Akai MPK25 Beat Pad Replacement

Geschrieben von: Serbinder Singh
  • Kommentare: 2
Akai MPK25 Beat Pad Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

Keine Schätzung

Einleitung

Problems with the beat pad are common with this device. Use this guide to replace a defective beat pad sensor.

  1. aDinq1CRlSbmudCJ

    • Remove all the selector knob covers by pulling them off.

    There’s NO need to remove all of the knobs in Steps 1 & 2…the faceplate lifts off with or without them attached.

    NY Prince -

  2. B3pRLtGKy5BYEjpC

    • Using needle nose pliers, remove the washers from the four corner selector knobs.

    Please, don’t use any pliers. Try to find a wrench in order to not damage the nuts nor scratch the panel. Anyway, many thanks for the explanation. Regards.

    Beto -

  3. RCGAxUdbgs3nBKwF

    • Flip the device over. Using a Philips #2 screw driver, remove the fourteen 10.3 mm black screws holding the back panel in place.

  4. IBV1WyKgrHsjCpfu
    IBV1WyKgrHsjCpfu
    tyeMKDgKDS3axnON
    kth5XHRJHZnQvRN2

    • Carefully flip the device to the front making sure you secure the face plate and the chassis together.

    • Please use care in following the step above to avoid ripping the ribbon cables connecting the two sides.

  5. LdMgZgBPlPC46I6d
    LdMgZgBPlPC46I6d
    aF31qLTCypm2Iq6J
    PMhURUKTK5TrYNqI

    • Rotate the device 180 degrees and carefully remove the face plate by slightly lifting the screen side towards you and then sliding the bottom out from under the keys.

    • Use care when doing the step above so that the ribbon connectors which connect the top of the chassis to the top of the face plate are not damaged.

  6. 1u5VqFIxnhfIhnEd

    • Using a Phillips #2 screwdriver, remove the thirteen 9.8 mm silver screws holding the mother board to the face plate.

  7. ZVbte5hNjhTjxZrE

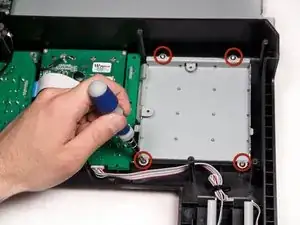

    • Using a Phillips #2 screwdriver, remove the four 9.8mm screws holding in the base of the beat pad.

  8. 2SNrSFsRiXn1JgrW
    2SNrSFsRiXn1JgrW
    LmCDGHpOQk3TKcGF

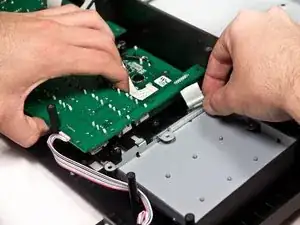

    • Slightly lift the mother board near the edge of the beat pads and wiggle the beat pad ribbon connector free.

  9. DsREFoyLVdKIXxXK
    DsREFoyLVdKIXxXK
    BxVoUryohXhAXyZm

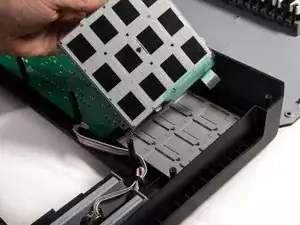

    • Remove the beat pad sensor from the face plate.

Abschluss

To reassemble your device, follow these instructions in reverse order.
