Einleitung
Use this guide if any of the keys are broken, chipped, or stuck.
Werkzeuge
Ersatzteile
-
-
Flip the device over. Using a Philips #2 screw driver, remove the fourteen 10.3 mm black screws holding the back panel in place.
-
-
-
Carefully flip the device to the front making sure you secure the face plate and the chassis together.
-
-
-
Rotate the device 180 degrees and carefully remove the face plate by slightly lifting the screen side towards you and then sliding the bottom out from under the keys.
-
-
-

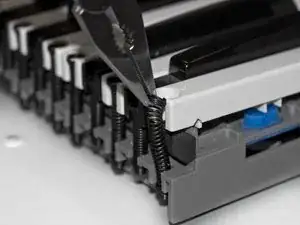

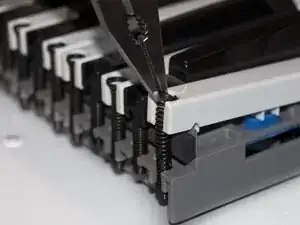

Using needle nose pliers, grip the top of the spring coil, that is holding down the key, and gently lift the spring away from the key.
-
-
-

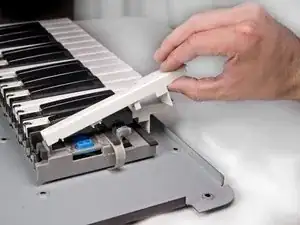

Lift the key from the front of the keyboard towards the back in order to remove it completely.
-
To reassemble the keyboard and close up the case, follow these instructions in reverse order.
There’s NO need to remove all of the knobs in Steps 1 & 2…the faceplate lifts off with or without them attached.
