Akai MPK25 LCD Replacement

Geschrieben von: Will Saba
  • Kommentare: 3
Akai MPK25 LCD Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

5 - 10 Minuten

Einleitung

Use this guide to replace a screen that is scratched, cracked, or broken.

  1. aDinq1CRlSbmudCJ

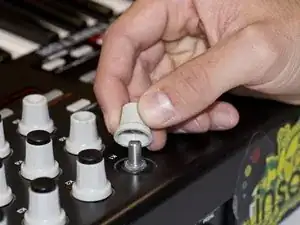

    • Remove all the selector knob covers by pulling them off.

    There’s NO need to remove all of the knobs in Steps 1 & 2…the faceplate lifts off with or without them attached.

    NY Prince -

  2. B3pRLtGKy5BYEjpC

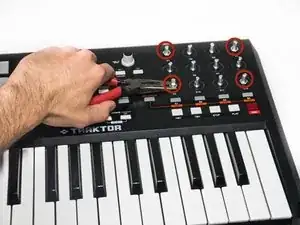

    • Using needle nose pliers, remove the washers from the four corner selector knobs.

    Please, don’t use any pliers. Try to find a wrench in order to not damage the nuts nor scratch the panel. Anyway, many thanks for the explanation. Regards.

    Beto -

  3. RCGAxUdbgs3nBKwF

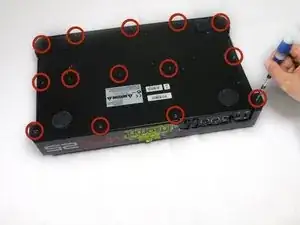

    • Flip the device over. Using a Philips #2 screw driver, remove the fourteen 10.3 mm black screws holding the back panel in place.

  4. IBV1WyKgrHsjCpfu
    IBV1WyKgrHsjCpfu
    tyeMKDgKDS3axnON
    kth5XHRJHZnQvRN2

    • Carefully flip the device to the front making sure you secure the face plate and the chassis together.

    • Please use care in following the step above to avoid ripping the ribbon cables connecting the two sides.

  5. LdMgZgBPlPC46I6d
    LdMgZgBPlPC46I6d
    aF31qLTCypm2Iq6J
    PMhURUKTK5TrYNqI

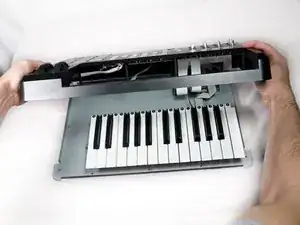

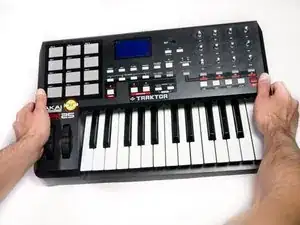

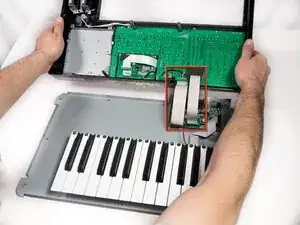

    • Rotate the device 180 degrees and carefully remove the face plate by slightly lifting the screen side towards you and then sliding the bottom out from under the keys.

    • Use care when doing the step above so that the ribbon connectors which connect the top of the chassis to the top of the face plate are not damaged.

  6. 3NalJ6uu4aWsPSbc

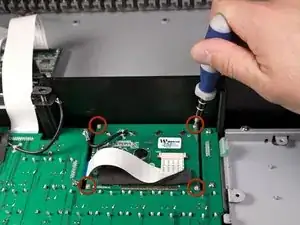

    • Using a Phillips #00 screwdriver, remove the four 8.9 mm screws.

  7. viZUNl5N6YDppYuV

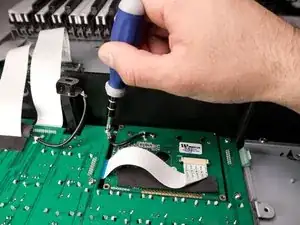

    • Using a Phillips #2 screwdriver, remove the one 9.8mm screw holding down the ground wire.

  8. CUTgk2ZMQF6LpUHs
    CUTgk2ZMQF6LpUHs
    Zjp3CNNPQoDMwJtL

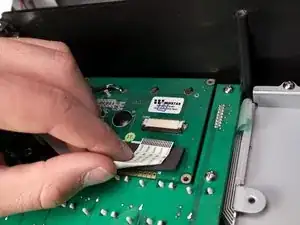

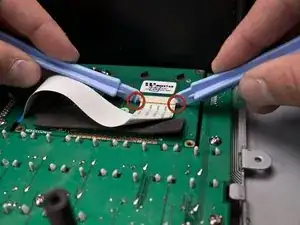

    • Using two plastic opening tools, slide the black locking mechanism on the ZIF connector towards you. This will remove the ribbon cable connecting the motherboard to the screen.

  9. bVfRIjHCQqnQRC4B

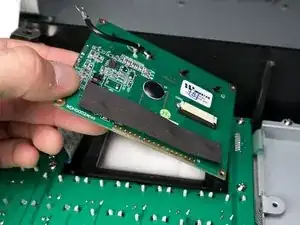

    • Lift the screen from either side, removing it from the board.

Abschluss

To reassemble the display, follow these instructions in reverse order.
