Akaso EK7000 4K Button Replacement

Geschrieben von: Annie Sun
  • Kommentare: 6
Akaso EK7000 4K Button Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 Minuten

Einleitung

This is a guide to replacing the up and down buttons on your Akaso EK7000. Required tools are: a metal spudger or any other instrument used to pry or separate, and a Phillips #000 screwdriver.

  1. oMogMNDDWARGLAJL
    oMogMNDDWARGLAJL
    yTSiinQa1MJHHnrg

    • Locate the battery cover at the bottom of the camera. Use your fingers to gently pry open the battery cover.

    Does anyone know who sells the up and down bottom/WiFi for the akaso ek7000 4k HD camera.

    Paul Buckholz -

  2. vcFnht2EVVUIRpQi
    vcFnht2EVVUIRpQi
    AjlZogxAVSnEW6uu

    • Locate the small plastic flap attached to the battery. Pull the battery out towards you.

    When I insert the battery ,it doesn't work so I took the battery again and I notice the terminal inside wiggling and it went out when I tilt it. How can u fix it to place back the terminal.

    Pakito Santos -

    Akaso ek7000 4k up&down button stuck where can I buy the part.

    Paul Buckholz -

  3. hoElpLvEd4lDNVYg
    hoElpLvEd4lDNVYg
    YWYlTlv5XInCYiPN

    • Using the metal spudger, gently pry open the front panel from the exposed battery cartridge.

  4. Y6RkUKU2Va4gKOGx
    Y6RkUKU2Va4gKOGx
    Huy2CgdDmHK1gUTY

    • Remove the rest of front panel with your fingers or with assistance from the spudger.

  5. Ll5NmZWl3SbdsYUH
    Ll5NmZWl3SbdsYUH
    yk6nOoRgDRpQ2Q4G

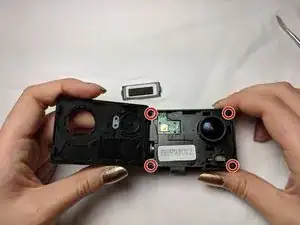

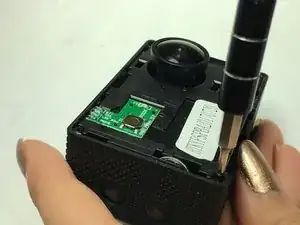

    • Using a Phillips #000 screwdriver, remove the four screws securing the cover plate.

  6. jXYpmcyyFwAap3C2
    jXYpmcyyFwAap3C2
    J6KFyUZ2MEXIdWYS

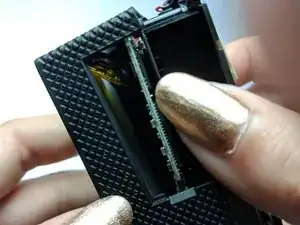

    • Using your thumb or a spudger, gently push up from inside the battery cartridge.

    • Gently lift the cover plate until you can see into the inside of the camera. The cover will not completely come off, so be careful not to damage any of the inner wiring.

  7. QoRTiFTlcoUppRXD
    QoRTiFTlcoUppRXD
    CGrxF3bmIrhNIoVM

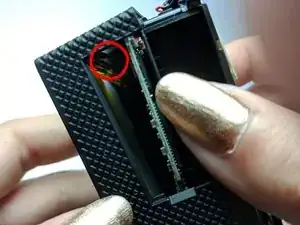

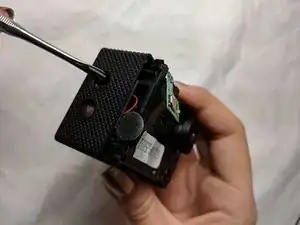

    • Using the metal spudger, push down on the up and down button as shown in the picture. Dislodge the button and it should fall to the bottom of the camera.

  8. TSRk5JxtgtG4IRtj
    TSRk5JxtgtG4IRtj
    6fkQOyQCWQTFqesr

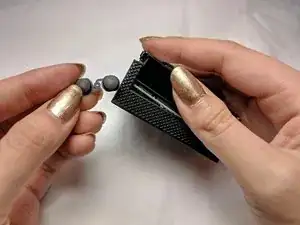

    • Again, using the metal spudger, gently pull out the button from within the camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
