Akko MOD 007 v2 Keyboard Switch Replacement

Geschrieben von: Farhan
  • Kommentare: 0
Akko MOD 007 v2 Keyboard Switch Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

15 - 25 Minuten

Einleitung

If your Akko MOD 007 v2 has a switch not working correctly, you will need to replace the keyboard switch to restore its functionality. These keyboard switches wear down over time, rendering them inoperable as they no longer register. Before replacing the switch, inspect the keyboard to confirm that it is the switch and not the PCB malfunctioning.

In this guide, you'll learn how to replace the keyboard switch through on your Akko MOD 007 v2. It has two features that make it simple. The keyboard is hot-swappable, which allows you to replace the switch without soldering. In addition, when buying a replacement keyboard switch, the Akko MOD 007 v2 is compatible with both PCB-mounted (5-pin) and, Plate-mounted (3-pin) switches.

Replacing more than one switch can be reproduced by repeating these instructions.

  1. m2enyyYLmGGiRJIE
    m2enyyYLmGGiRJIE
    dcDqBMjcCRJKoCgZ

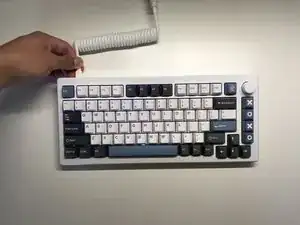

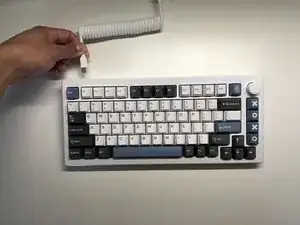

    • Unplug the USB-C cable.

  2. Pjx3IVybtaP42npe
    Pjx3IVybtaP42npe
    lUkcYD3RUQZJUWR2

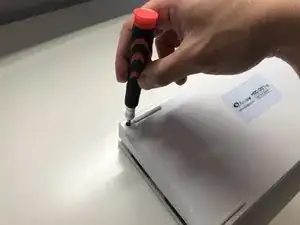

    • Flip the keyboard over so the backside is facing up.

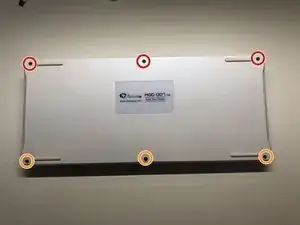

    • Remove the three longer 20.2 mm screws using the T5 Torx screwdriver.

    • Remove the three 8 mm screws using the T5 Torx screwdriver.

  3. Cas1ply66BqiBGLq
    Cas1ply66BqiBGLq
    t6YUwDSdJCfBWC22

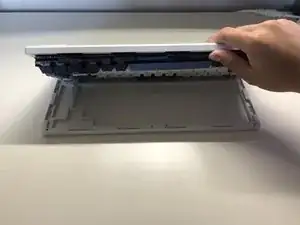

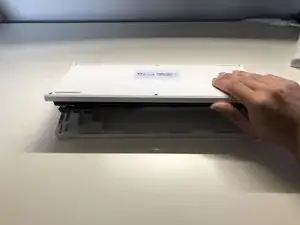

    • Pull the front and back case apart.

    • If your keyboard is dirty, you’ll want to clean it before continuing. Use compressed air or a brush.

  4. 3DHSS1tpiDAf1IOh
    3DHSS1tpiDAf1IOh
    1wGArsSsoijVyNMM

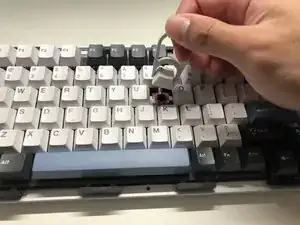

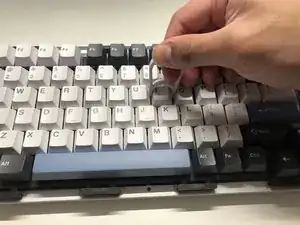

    • Insert the keycap puller horizontally on the keycap and pull up.

    • Excessive force may break the tool or keycaps so don't yank the keycap up.

  5. icYxbV11yVTU16cX
    icYxbV11yVTU16cX
    FKGNffbQ3LuOL2jG

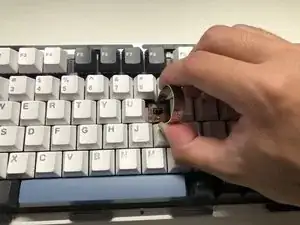

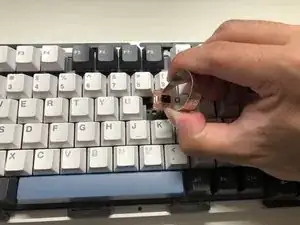

    • Insert the switch puller vertically in the switch tabs and gently pull up.

  6. VH54MPSBnPKcdRvy
    VH54MPSBnPKcdRvy
    PiGrWQ22fviVRsWd
    bRjRK5yNhSpHhVJA

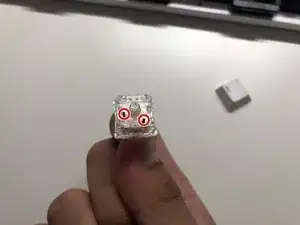

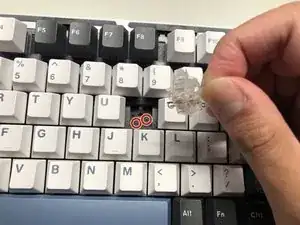

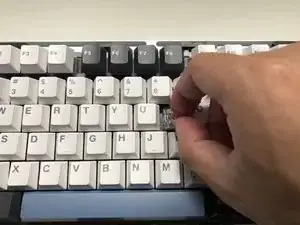

    • Orientate the new switch to align the pins to the board's sockets.

    • Push the switch down into the sockets.

    • Make sure the pins are aligned to sockets, as misalignment will cause the switch to be faulty.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Test the switch by opening a keyboard tester website, like 'keyboardtester.com,' and press the key to see if it activates.
