Akku und Trackpad. Das MacBook Pro 15" Retina 2012-2015 auseinanderbauen

Geschrieben von: Aleksandr ApplePartsPRO
  • Kommentare: 73
Akku und Trackpad. Das MacBook Pro 15" Retina 2012-2015 auseinanderbauen

Schwierigkeitsgrad

Schwierig

Schritte

12

Zeitaufwand

3 Stunden

Einleitung

Mit dieser Anleitung baust du den Akku und das Trackpad des MacBook Pro 15" Retina 2012-2015.

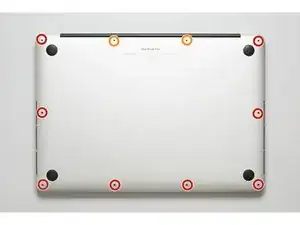

  1. fpRTHqYrGb1C2xWO
    fpRTHqYrGb1C2xWO
    sGZcvGlSWHmKsQZE

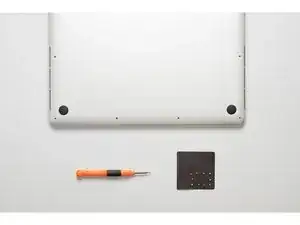

    • Entferne die folgenden Pentalobe Schrauben, die die untere Abdeckung des MacBook Pro befestigen:

    • Acht 3,0 mm

    • Zwei 2,3 mm

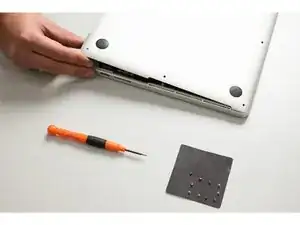

  2. FvYQkJltYrFYhwRx

    • Entferne die Gehäuseunterseite, indem Du sie an einer Ecke nahe der Scharnierabdeckung anhebst.

    • Lege die Gehäuseunterseite zur Seite.

  3. GgA1cLsOuywpVM2O

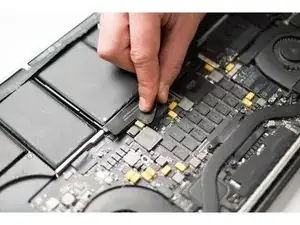

    • Entferne den Warnsticker auf dem Verbindungskabel des Akkus.

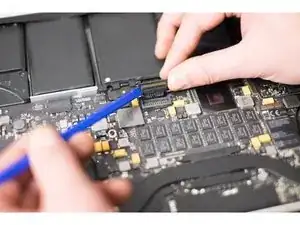

  4. uQ4hMp2wfGEtlcV5
    uQ4hMp2wfGEtlcV5
    Tn3HilYEd1BdVQFL
    NSPxTZun5dfccwG2

    • Verwende kein metallenes Werkzeug!

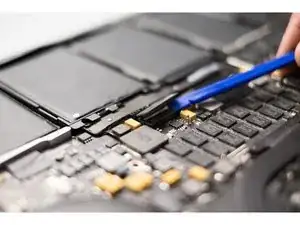

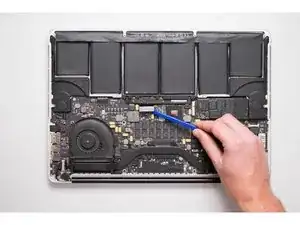

    • Benutze den Spudger, um das Verbindungskabel der des Akkus vorsichtig und mit einer nach oben führenden Bewegung aus dem Steckplatz der Platine zu entfernen.

    • Biege das Akkukabel so zur Seite, dass es nicht versehentlich mit der Platine in Berührung kommt.

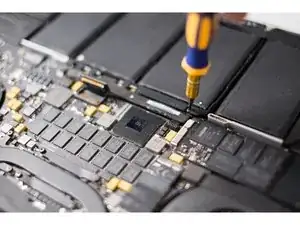

  5. AApXTf2JCa1U5FAG
    AApXTf2JCa1U5FAG
    vXHYVTFMeUHCA1Ak

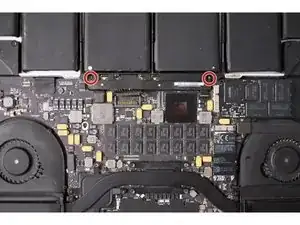

    • Entferne die folgenden T5 Torx Schrauben des Akkus.

    What kind of screws are these? T5 Torx or ?

    rob -

    T5 torx is correct.

    tore -

  6. PVFZHhuRQlDaOqik
    PVFZHhuRQlDaOqik
    P4f4qwE15UkEmY1J
    y6xYDn2iwbESaqTh

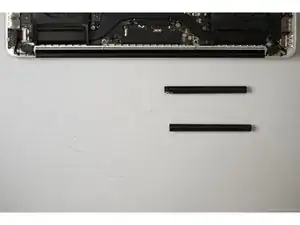

    • Der Akku könnte beschädigt werden! (Benutze KEINE metallenen Werkzeuge - bei Beschädigungen kann der Akku in Brand geraten und Flüssigkeiten freisetzen!)

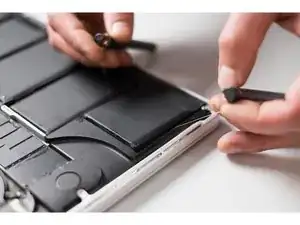

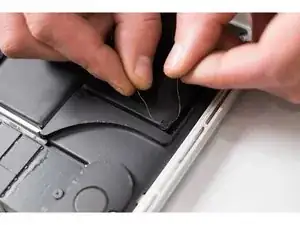

    • Bitte beachte: Schneide das Klebeband unter dem Akku mit einem dünnen Draht durch. Ziehe den Draht langsam hin und her. Versuche nicht, den Akku anzuheben oder metallene Werkzeuge zu benutzen.

    The High E String from my acoustic guitar worked like a charm. Dental floss, not so much!

    Vincent Loiacono -

    Can you buy a tool like this? If so whats it called because I cant find it and I don't have a guitar lol... !

    oliverdixon1990 -

    I used a 28ga (.32mm) Kanthal wire which I borrowed from my vaper roommate. That was much too thick so the process went really slowly. Took more than an hour and a half to cut all the batteries. I would recommend to get at least 34ga Kanthal if that's what you have to work with

    Ilya Gulkov -

    You can get a 34ga (.16mm) Kanthal wire from any vape shop. I used a 28ga (.32mm) and it worked, but it was much too thick and I had to go really slow

    Ilya Gulkov -

    I recommend something like this: http://a.co/cYzsvbP

    chriscase -

    First off, I recommend having a second set of hands to help hold the MacBook pro in place. It’s probably doable by yourself, but have someone else hold the laptop in place while you cut the adhesive.

    Second, we tried using a single strand of cat6 wire. (one of the 4 twisted wires inside a cat6 cable). This was fruitless, because the wire didn’t have enough tensile strength, nor could it sheer anything with a rounded plastic sheath on the outside. We had success with grabber nylon twine, which we use for pulling wires through the wall. Make sure whatever you use has tensile strength and is able to actually cut.

    Alex Grayson -

    It ‘s Not safe to use guitar string! I tried this and caused a small (orange) arc when the wire slid down to the bottom where the conductive contacts are. It’s better to use high-strength nylon thread or something non conductive.

    jblongz -

    I had good luck using 17 lb. monofilament fishing line tied to two pencils. Do one battery at a time, starting at the outside. Get the line under the plastic carriage in the middle two batteries. Sawing fast seems to soften the adhesive rather than going slow. After you get the individual batteries loose, then slide the line under the pairs. When the whole six pack is loose slide it forward out of the way.

    Miguel Quemados -

    I used 3 strands of dental floss connected on both sides to a clothes pin. Then sliding back and forth with the floss under the cell and within 10 minutes all 4 cells were out. The cleaning of the remnant glue strips with the adhesive remover took way more time.

    Meindert Kok -

    kitchen twine did the thing for this step for me

    Pierre Souchay -

    Wow - that is difficult… I spent a long time trying to find something suitable - eventually I found some 90kg strength kitestring and that did the trick - was not comfortable with using anything conductive…

    Colin Coleman -

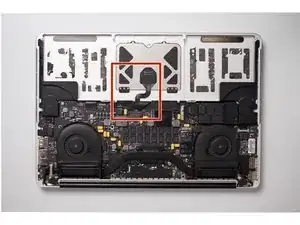

  7. hW1RnBUGAuYWTrFo
    hW1RnBUGAuYWTrFo
    xQi6RdKTIOaOWiUg

    • Stelle sicher, dass Du das Verbindungskabel des Trackpads nicht beschädig hast!

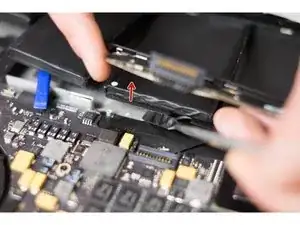

    • Verwende den Metal Spudger, um die Platte unterhalb des Akkus anzuheben.

    It is too hard to get the center 2 batteries off the metal plate. I used a plastic drinking straw like a funnel, tucked it under the batteries to directly get to the glue and used a few drops of 70% rubbing alc with a dropper. (i did not have the 91% Isopropyl Alcohol although 91% is recommended as it dies quickly) I did this to both the batteries on both sides while gently pulling the string down to cut through the glue. Once my batteries were off I used the plastic spudger to go under the metal plate which is glued on all sides.

    sindhujarajaramji -

    The middle two cells sit on a black back plate. This protects the trackpad, so you’ll be fine using the cutting wire. The only place to watch out for is right at the top, near the battery connector. If you look just to the right of the battery connector, you’ll see another connector which is for the trackpad. Follow that wire and just make sure you’re careful with the wire around it.

    You’ll also find that the adhesive doesn’t start right at the top of the battery. Rather, it starts about 1cm from the top. So, you shouldn’t have any trouble avoiding the trackpad wire.

    Alex Grayson -

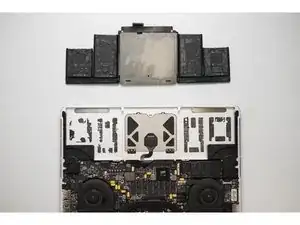

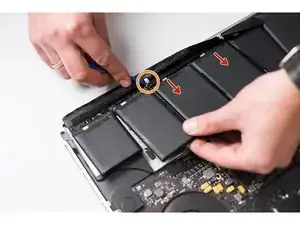

  8. LQ6dvMbPKMMGRYpT
    LQ6dvMbPKMMGRYpT
    OCZolm41mWbWv2YY

    • Entferne den Akku.

    I used the isopropyl method to ease the glue, applied with an inkjet refill syringe… I stripped a piece of copper wire (12”) and twisted the strands to make the wire string to cut the glue. Took less time to remove the battery that I thought it would. hat surprised me was I found stray small black screws stuck to the little magnets next to the battery connector, turns out they were from the fan casings, so keep an eye out for that. Great tutorial, much easier replacement than I thought beforehand.

    Eric Robinson -

    what is a little misleading about this photo is that there is a black metal piece between the trackpad and battery that did not come off with the battery for me. You can see the bottom of it in this photo sitting on top of the battery. That piece also needs to be pried up as well as it is glued down. But you don’t need to use any metal wire or anything like that, just take the spudger and get it under it and pry it up. it will start to come off and you can pull the rest up.

    breakfastcoffee -

    That piece of metal under the batteries is really stuck on. Prying alone doesn’t do it. I used a heat gun. The glue is around the perimeter so heat there not the whole thing. Use the spudger while heating. It slowly comes up. The trackpad is then held in by two brackets with six screws. Take out the three shiny one and the pad drops down into the computer.

    Miguel Quemados -

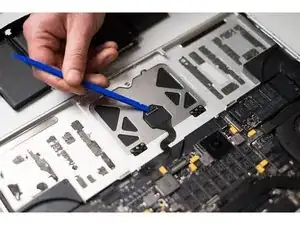

  9. LNevowWLXVHXWaUq
    LNevowWLXVHXWaUq
    KH1caUQKLvBwyVFa

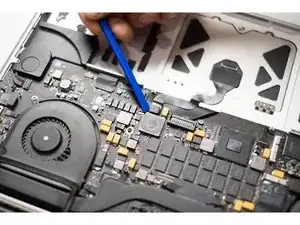

    • Verwende nun das flache Ende des Spudgers, um das Verbindungskabel des Trackpads vorsichtig zu entfernen.

    Caution — Photo 1 is slightly misleading — you don’t want to pry where the author is pointing with the spudger. Instead, carefully pry behind the connect, under the large black round rectangle until the connect pops out. Note the ribbon cable is held also with a small dollop of glue at the edge of the trackpad.

    Acme Nerd Games -

  10. LHcNmfppC1Cgrs1Y
    LHcNmfppC1Cgrs1Y
    PYrjC1ovqXBbSoqp
    KxwWLhXmSR2n4CgQ

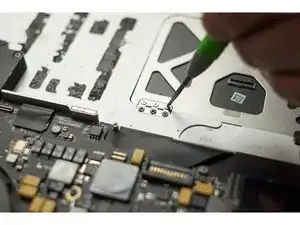

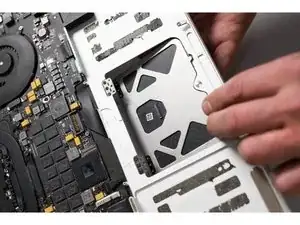

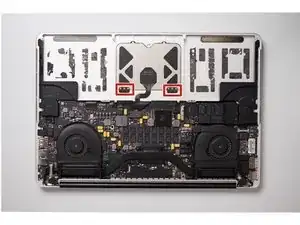

    • Löse die hellfarbigen Schrauben.

    • Entferne das Trackpad.

  11. xybcUNK2rYD22mUJ

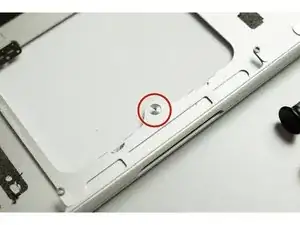

    • Einstellungsschraube für den Druckpunkt des Trackpads.

  12. ZMvRRTFjpdmoooEX

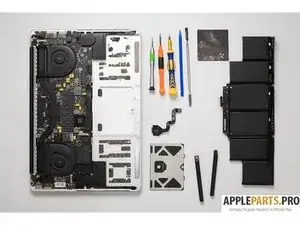

    • Viel Erfolg!

Abschluss

Folge der Anleitung in umgekehrter Reihenfolge, um das Gerät zusammenzubauen.
