Alcatel Fierce 4 Front-Facing Camera Replacement

Geschrieben von: Rawan
  • Kommentare: 1
Alcatel Fierce 4 Front-Facing Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

30 - 45 Minuten

Einleitung

If you're noticing that Alcatel Fierce 4's Front camera is not functioning well and has black spots or slow but you are not ready to upgrade your phone and you like it. It’s the time to replace the camera. Follow this guide from start to finish!

  1. npcfDTTZkO42iSqj

    • Using a plastic opening tool, pry the back cover off of the phone.

  2. 6HP2FxNnYcZZb5Se
    6HP2FxNnYcZZb5Se
    JfhZj2nMGkbQGEy1

    • Remove the seventeen Phillips #000 screws from the mid-frame.

  3. EYVg6pDhCjLECC3a

    • Pry off the mid-frame using a plastic opening tool, working your way around the perimeter.

  4. nFbCWvLbwKVNPmjY
    nFbCWvLbwKVNPmjY
    4DD6ArkT5sXwkByk

    • Use a plastic opening tool to disconnect all of the cables on the motherboard.

    • Use a spudger to flip up the retaining flap on the ribbon cable ZIF sockets.

  5. drBqiqAqlQBpkWe1

    • Remove the motherboard from the phone.

  6. m61yWWRvMP2Gpnvb

    • Carefully pry up the battery with a plastic opening tool, or your hands.

    Then what...

    Thomas Hudson -

  7. RahRjyGJK3MrUspV
    RahRjyGJK3MrUspV
    cPCqhibOh2GCPgHL
    Qe6UB6fY3G4GxKyH

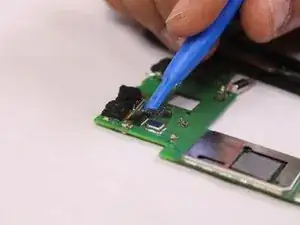

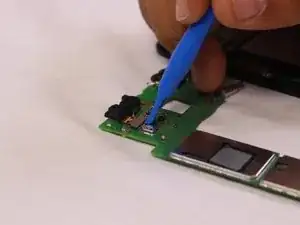

    • Use a plastic opening tool to pry up the camera connector from the motherboard.

    • Remove the camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
