Alcatel Fierce 4 Loud Speaker Replacement

Geschrieben von: Rawan
  • Kommentare: 1
Alcatel Fierce 4 Loud Speaker Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

15 Minuten

Einleitung

If you're noticing that Alcatel Fierce 4's speaker is getting bad and low and you can’t hear well but you are not ready to upgrade your phone and you like it. It’s the time to replace the speaker. Follow this guide from start to finish!

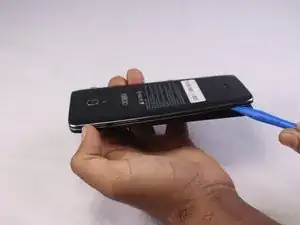

  1. npcfDTTZkO42iSqj

    • Using a plastic opening tool, pry the back cover off of the phone.

  2. 6HP2FxNnYcZZb5Se
    6HP2FxNnYcZZb5Se
    JfhZj2nMGkbQGEy1

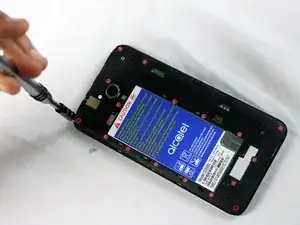

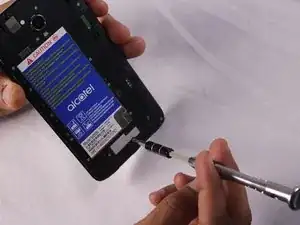

    • Remove the seventeen Phillips #000 screws from the mid-frame.

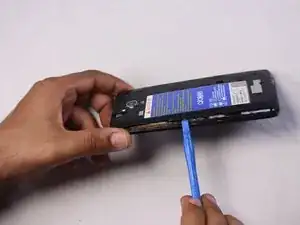

  3. EYVg6pDhCjLECC3a

    • Pry off the mid-frame using a plastic opening tool, working your way around the perimeter.

  4. nFbCWvLbwKVNPmjY
    nFbCWvLbwKVNPmjY
    4DD6ArkT5sXwkByk

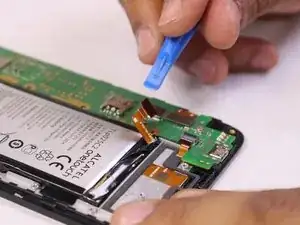

    • Use a plastic opening tool to disconnect all of the cables on the motherboard.

    • Use a spudger to flip up the retaining flap on the ribbon cable ZIF sockets.

  5. drBqiqAqlQBpkWe1

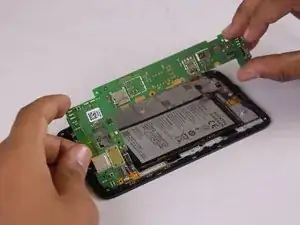

    • Remove the motherboard from the phone.

  6. m61yWWRvMP2Gpnvb

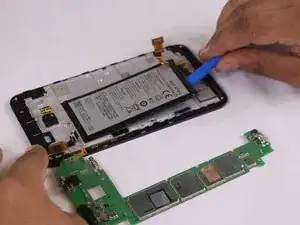

    • Carefully pry up the battery with a plastic opening tool, or your hands.

    Then what...

    Thomas Hudson -

  7. PlA1CeKgVAk41RNK
    PlA1CeKgVAk41RNK
    CnrGLbd4EjLW26Je
    cUlAGBQTA6ZZCy1I

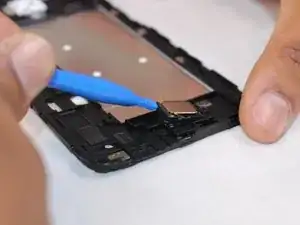

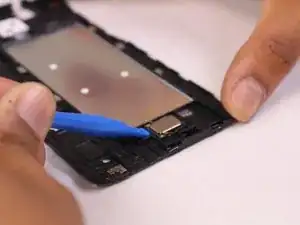

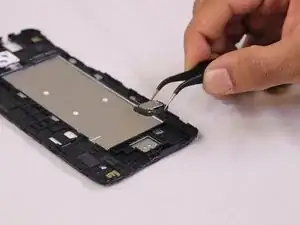

    • Use a plastic opening tool to pry up the speaker.

Abschluss

To reassemble your device, follow these instructions in reverse order.
