This guide is a prerequisite guide to accessing the internal components of an Alcatel One Touch Evolve 2 phone that need replacing. Be aware that the phone is made of many plastic and electronic parts, so be gentle and diligent when using any force.
-
-

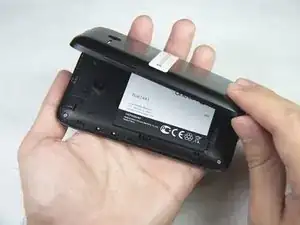

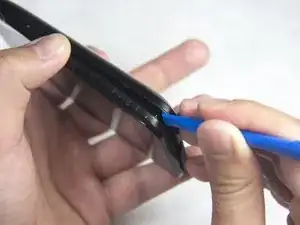

Remove the back cover using one of the plastic opening tools and the slit in one of the corners.
-
-
-

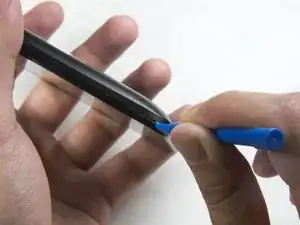

Remove the battery using one of the plastic opening tools and the dome-shaped indent next to the battery face.
-
-
-
Unscrew the four 4mm JIS screws in each corner using the J000 screwdriver head. Turn the screws counter-clockwise to loosen.
-
-
-

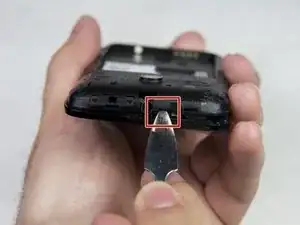

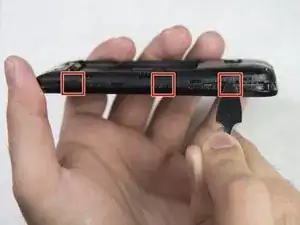

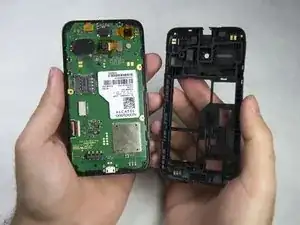

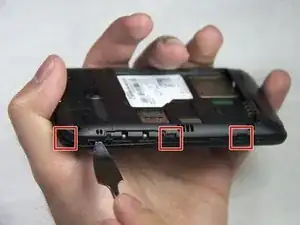

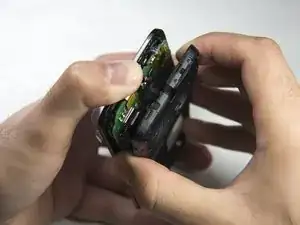

Insert a plastic or metal spudger between the front cover and rear frame in one of the areas indicated by the red squares and gently pry the rear frame loose. Repeat the process all the way around the phone until the rear frame comes loose.
-
To reassemble your device, follow these instructions in reverse order.
