Alcatel One Touch Evolve 2 Rear-Facing Camera Replacement

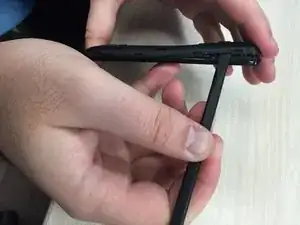

Take a nylon spudger and pry apart the back plastic casing of the phone. Begin with the gap in the bottom right hand corner, and pry the spudger around the outside of the phone until it dislodges from the body.

Once separated, remove the plastic backing from the phone and set it aside.

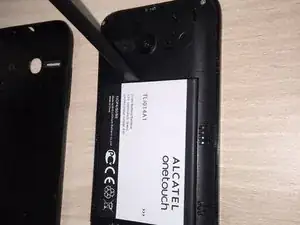

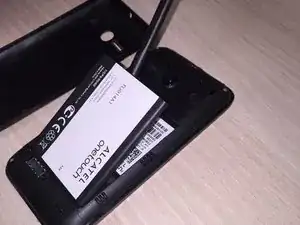

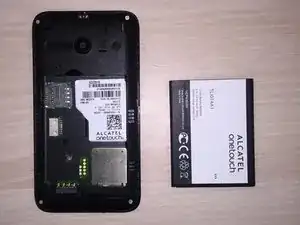

Remove battery from the back of device by prying the spudger underneath the battery, via the semicircular indentation at the top of the battery pack

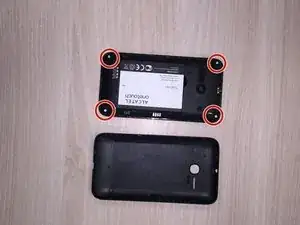

Using a J000 screwdriver, remove the four screws from the four corners of the back of the phone body. Keep the screws together and set aside.

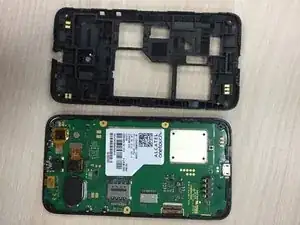

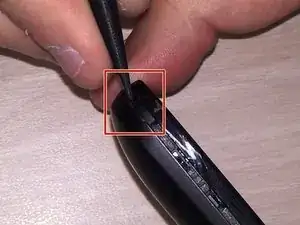

Use the nylon spudger to pry the plastic backing from the rest of the phone. Begin by using the indentation at the top left side of the of the phone as an access point. Work counter clockwise around the outside of the phone until the backing is dislodged.

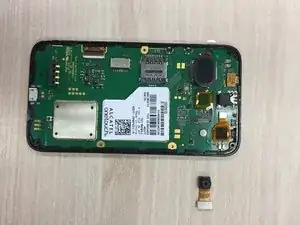

Use the nylon spudger to gently dislodge the broken camera from the inside of the phone. Insert the spudger underneath the corner of the metal plug, and pry upwards.
