Einleitung

In this guide you will be shown how to effectively replace the front camera on your device.

  1. xEan1ZFScq2CgAir
    xEan1ZFScq2CgAir
    IxZoif1C51heffVX

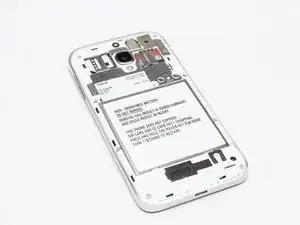

    • Pry with a plastic opening tool, or your fingernail, in the divot at the bottom left corner of the phone.

    • Lift the rear case by the corner nearest the divot and remove it from the phone.

  2. 3DkBUNbwaacL6iKd
    3DkBUNbwaacL6iKd
    IDRaTSrXRydwNNiY
    YPneAepKWEqbAbtU

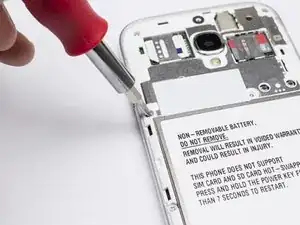

    • Remove the 11 Phillips #000 screws.

    • The midframe should lift free.

  3. ekyJITuFNRmymZnR
    ekyJITuFNRmymZnR
    wnDfBywGBq3brLWn

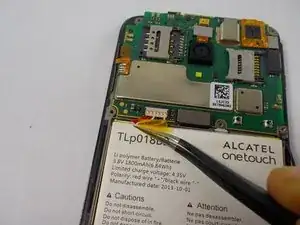

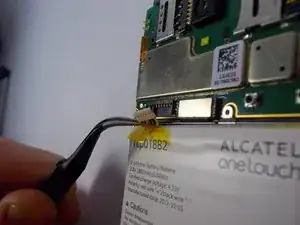

    • Use the tip of a spudger to pull back the yellow tape covering the battery connector.

    • Use a pair of tweezers to pull the battery connector from its port.

    • Be careful not to tear the battery from its connection.

  4. 6WOBomIwa6uCWXeW
    • Carefully remove the motherboard from the rest of the phone.

  5. PmvphQPARGmYWvu3
    PmvphQPARGmYWvu3
    lWWLkklUYEpYJhge

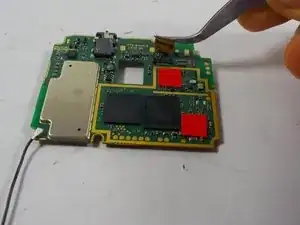

    • Use a pair of tweezers to disconnect and remove the front facing camera from the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
