Alcatel One Touch Pop 7 Battery Replacement

Geschrieben von: Blake Davis
  • Kommentare: 1
Alcatel One Touch Pop 7 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 - 10 Minuten

Einleitung

In the case that your device is unable to power on, their may be a problem with its battery. This guide will show you have to replace the battery for the Alcatel One Touch Pop 7.

  1. wTuJJVXIsbNjyoVd

    • Begin by opening SD port cover as this is the best location to start prying.

  2. vCSlhmtiWgJujMqE

    • Use the plastic opening tool to pry around the edges of the back cover until it pops off.

  3. KL33mVTmVe1ysDby

    • Use precision tweezers to disconnect the battery from the ZIF connector.

    How does the ZIF connector fit in? Do I ease it up, back, or some other direction?

    Bnewb -

  4. oxayyLiWMfKkWxSf
    oxayyLiWMfKkWxSf
    wlDYMNAImhkJPxen

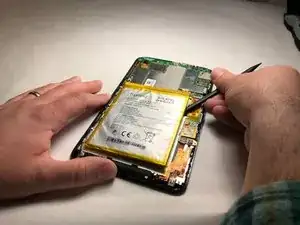

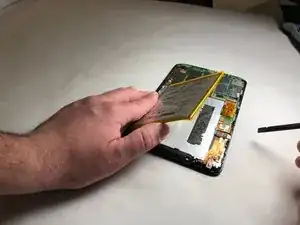

    • Use the black stick spudger to pry the battery from the adhesive strips.

    • Do not bend or puncture the battery. Work slowly and carefully.

Abschluss

To reassemble your device, follow these instructions in reverse order.
