Caution: Handling of Sharp Objects

Please use caution when handling tweezers and keep out of reach of children.

If you notice that your phone has a delay in locking or turning the volume up and down, it is recommended that you change your Power/Volume button rocker.

  1. 4MjOwxOTwGCPFWFO
    4MjOwxOTwGCPFWFO
    EaiDSRPOQXYaNHBM

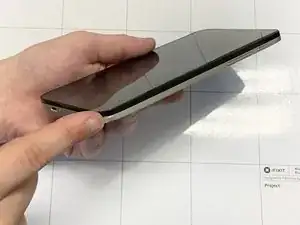

    • Begin by removing the back of the phone. Press your nail or a thin object in the bottom right-hand corner of the phone and gently press to release the back of the phone from the front.

  2. bqtxdIdDTjmnchRi
    bqtxdIdDTjmnchRi
    odFvQEiodCKHhlAB

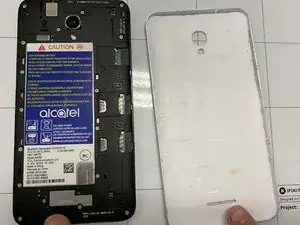

    • Once removed completely, use the back portion to disassemble the Power/Volume Button Rocker.

  3. JaOSFMaPkrkUlIFZ
    • Remove the middle insert of the elastic on the Power/Volume button rocker with tweezers.

  4. oj2463Z3rhp3MBkH
    oj2463Z3rhp3MBkH
    AbddPLLsD5LfxCOB
    6vHyEXRRDGBpAvR2

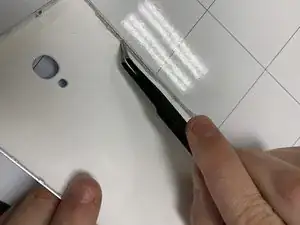

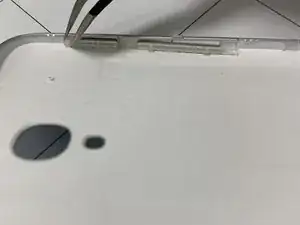

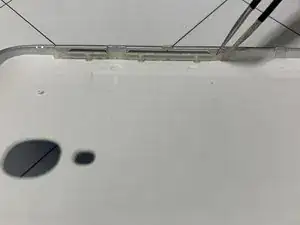

    • Remove the 3 elastic bands holding the rocker in place with tweezers.

  5. uZHqdqR26DKFasWd

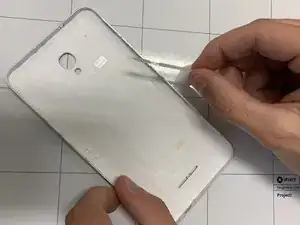

    • Once removed, place new rocker in same elastic slots. Follow instructions backwards to reassemble.

Abschluss

To reassemble your device, follow these instructions in reverse order.
