Alcatel Pop 4 Plus Speaker Replacement

Geschrieben von: Maalik Poleon
  • Kommentare: 0
Alcatel Pop 4 Plus Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

This guide will show you how to replace your Alcatel Pop 4 Plus speaker. This guide involves removing the back cover and the secondary cover where the speaker is located. Then you just pop it out and put in the new speaker.

  1. OqlwKJsW3GYXs6RR
    OqlwKJsW3GYXs6RR
    HGwutq6wYZ3wdxKi

    • Remove the back cover by sliding your fingernail in the grove around the edge of the phone and prying it off.

  2. O6BxyaJxrZPBBRGJ
    O6BxyaJxrZPBBRGJ
    ykErhSAVb1TVIld5

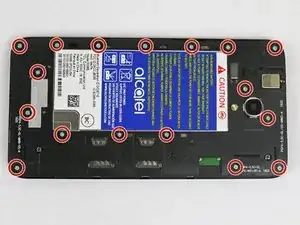

    • Remove seventeen 3mm Phillips #000 screws from the mid-frame.

  3. FoX2QmDIjN6KShQW

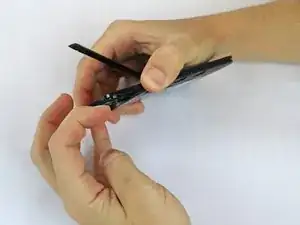

    • Use the flat end of the spudger, or your fingernail, to pry off the mid-frame.

  4. 31NNOLC5spkJeDQA
    31NNOLC5spkJeDQA
    rmbYLDPWpaWGmDHT

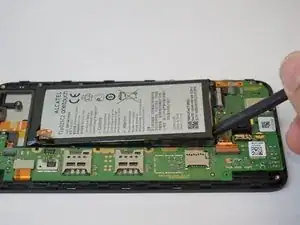

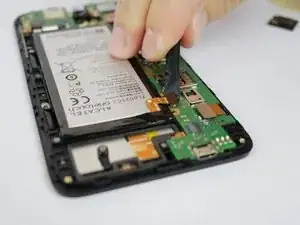

    • Use the flat end of the spudger disconnect the battery from the motherboard.

    • Use the flat end of the spudger tool to pry out the battery.

  5. oKorVJg4dePgYfgO
    oKorVJg4dePgYfgO
    ElZKREDQX4ftDOat

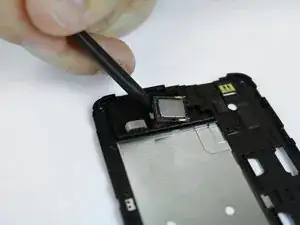

    • Use a spudger to pry the speaker from the mid-frame.

Abschluss

To reassemble your device, follow these instructions in reverse order.
