Alienware 15 R2 Battery Replacement

Geschrieben von: Nathaniel Evans
  • Kommentare: 6
Alienware 15 R2 Battery Replacement

Schwierigkeitsgrad

Difficult

Schritte

9

Zeitaufwand

30 Minuten

Einleitung

If the battery of your Alienware 15 R2 dies quickly, or fails to charge, you may consider replacing it. This will show you how to do so. When working with computers, always make sure to unplug your computer and ground yourself before reaching inner components so you don’t accidentally release an electrical charge into the sensitive technology. The discharge could potentially damage your computer’s internals.

  1. 4aAMwYk2CND4kPbA
    4aAMwYk2CND4kPbA
    rx5QYraIHpfDJTle
    wliNRVTDXDbFyJek

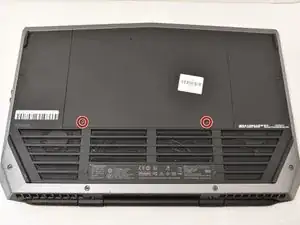

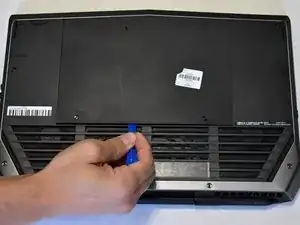

    • Place laptop upside down with the hinge facing you, then remove the two 9mm Phillips #0 screws located in the bottom left and right of the of the rear panel.

    • Remove the rear panel by using the iFixit opening tool to separate it from the back of the laptop.

  2. ivMYAIJQqopqoceD
    ivMYAIJQqopqoceD
    o3OTwpagnWV1YGUx

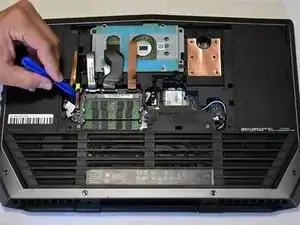

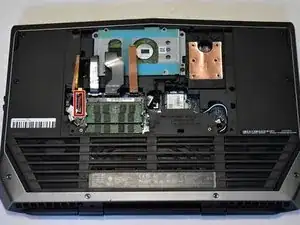

    • Use the iFixit opening tool to disconnect the battery cable. Put the iFixit tool underneath the cable and then pull it to remove.

    Also be sure to disconnect the black and white cable next to the small m.2.

    Hard Drive also needs to be removed at the 4 screws.

    mdumtshali -

  3. bgIcdZqySBgOpxfl
    bgIcdZqySBgOpxfl
    G3DMSvJMwPNWDQhg

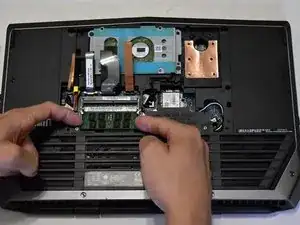

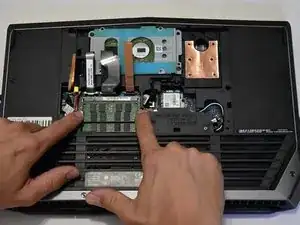

    • Find the RAM located near the edge of the computer closest to you. Locate the small latches on either side of the RAM stick and push in the two latches to release. Gently grasp the RAM stick on either side and pull straight out. Repeat for the second RAM stick.

  4. qC6qptxj2QlCNvgI
    qC6qptxj2QlCNvgI
    sVC1okBuA5aW2FQL

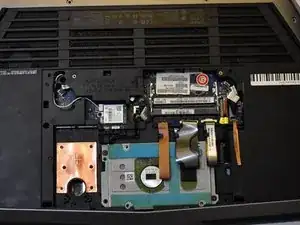

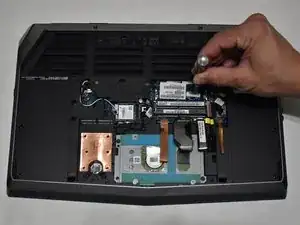

    • Using a Phillips #0 remove the small 1X 3mm screw behind where the RAM used to be.

    The four cables in the middle; two brown and two grey. They need to be disconnected in order for them not to tear when separating the bottom shell of the computer at the later stage.

    mdumtshali -

  5. 2yYxCwrxhWVKvTYD

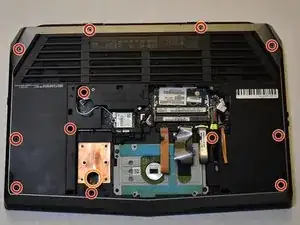

    • Remove all screws from the back casing. (4X 18mm, 4X 10mm, 4X 6mm)

    • Press your finger in the hole next to the hard drive to lift the key board.

    There’s a cable still connected between the display and the top case in between these two steps. Be sure to disconnect it before pulling the two apart completely.

    mdumtshali -

    There is another screw with P label next to it should be removed

    Jianwei Hu -

  6. 2jTCEYDdVXLhBblY

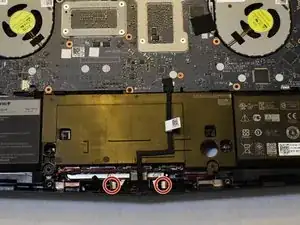

    • Disconnect and move aside the left and right wires.

  7. pIfWgOr6T2RZoPFw
    pIfWgOr6T2RZoPFw
    SHllLrtwC4HCv3FY

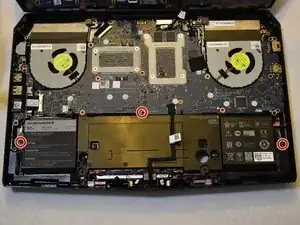

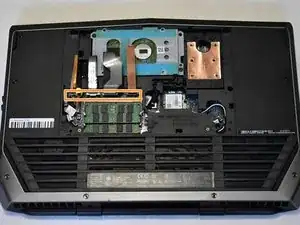

    • Using a Phillips #0 remove the screws holding the battery in. (3X 6mm)

    • You may also remove the ribbon cables on the bottom of the laptop to gain more room to work. (This is not required)

  8. k3dolo1B1lgHX4ke

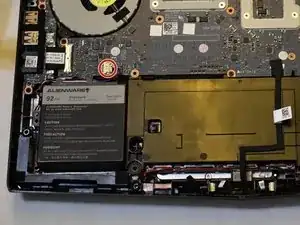

    • Remove the red, white, blue, and black colored wires connected to the motherboard.

  9. RnWEbAMbGPnjNkpw

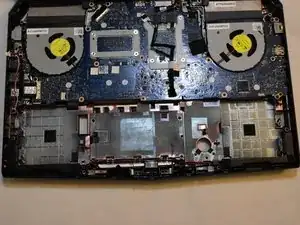

    • Lift the battery from the front edge and remove.

    Great research info for battery replacement

    JK T -

Abschluss

To reassemble your device, follow these instructions in reverse order.
