Alienware 17 R2 Hard Drive Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Alienware 17 R2 Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

9 - 15 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Hard Drive.

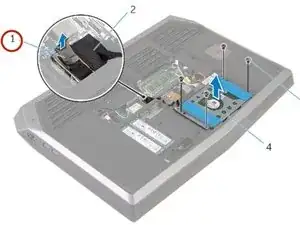

  1. VFxmGrGixx3VEZnh

    • WARNING : Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

    • CAUTION: Hard drives are fragile. Exercise care when handling the hard drive.

    • CAUTION: To avoid data loss, do not remove the hard drive while the computer is in sleep or on state.

    • Using the pull tab, disconnect the hard-drive cable from the system board.

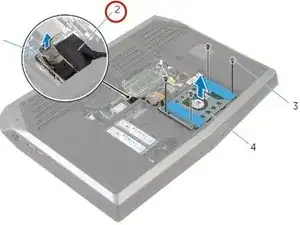

  2. IhdtGJV4SCQVwfRh

    • Note the hard-drive cable routing and remove the cable from the routing guides on the computer base.

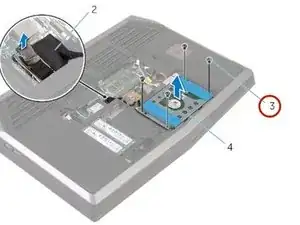

  3. BtEdorbKL36VDkYs

    • Remove the screws that secure the hard-drive assembly to the computer base.

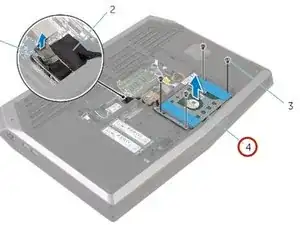

  4. ZnaH3bKECMbT1Odt

    • Lift the hard-drive assembly off the computer base.

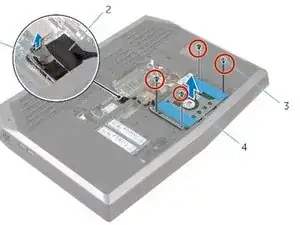

  5. haFbfQZtIcBrZLgy

    • Remove the screws that secure the hard-drive bracket to the hard drive.

  6. y6TvTBO2p4GnHpj4

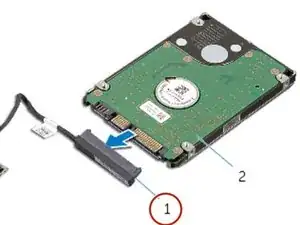

    y6TvTBO2p4GnHpj4

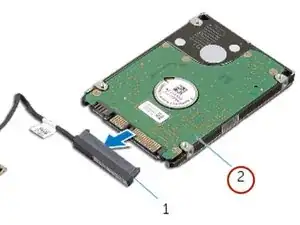

    6ouIvS6WeWle3m1x

    • Disconnect the interposer from the hard drive.

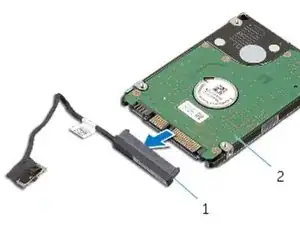

  7. kX3ikneTwenQlQXK

    • Connect the new interposer to the hard drive.

  8. XAZMe2WhTPKp2WZH

    • Align the screw holes on the hard-drive bracket with the screw holes on the hard-drive assembly.

  9. Asp6j1UyBWDJfl5W

    • Replace the screws that secure the hard-drive bracket to the hard-drive assembly.

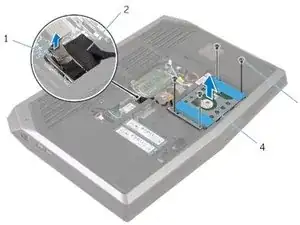

  10. nETre4xmdqhSCkqC

    • Align the screw holes on the hard-drive assembly with the screw holes on the computer base.

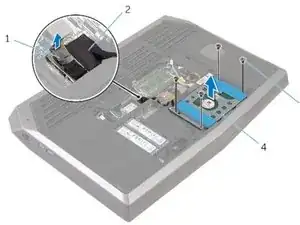

  11. aiUGVsZ4BjfCflsk

    • Replace the screws that secure the hard-drive assembly to the computer base.

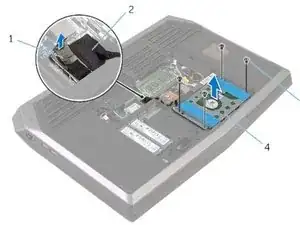

  12. Nrq6J5pyPGxESMYJ

    • Route the hard-drive cable through the routing guides on the computer base.

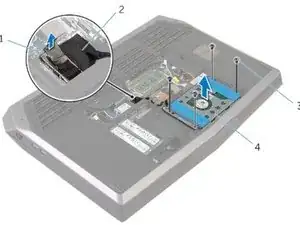

  13. hQVNUfVmPSIPdecK

    • Connect the hard-drive cable to the system board.
