Alienware 17 R2 Memory Modules Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Alienware 17 R2 Memory Modules Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

4 - 8 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Memory Modules.

  1. cAXkg6X6QpaSCAAu

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

    • Remove the base panel.

    • Using your fingertips, carefully spread apart the securing clips on each end of the memory-module slot until the memory module pops up.

  2. lmi5Sa2d5FTqeD5L
    lmi5Sa2d5FTqeD5L
    eYgYNT6CuSFhkFXo

    • Slide and remove the memory module from the memory-module slot.

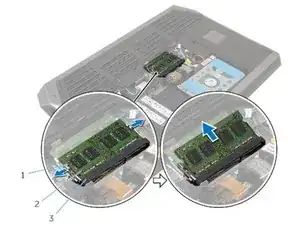

  3. L6mNRjxGSNjTJunu

    • Align the notch on the new memory module with the tab on the memory- module slot.

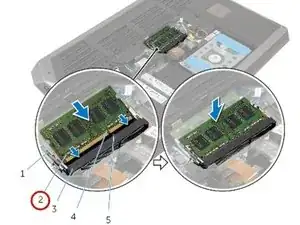

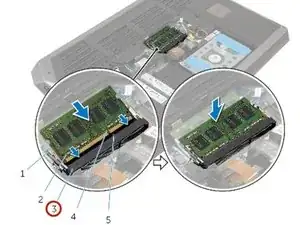

  4. NwTSxUAagv4byt2W
    NwTSxUAagv4byt2W
    KDQLKS1QaduHNqUe

    • Slide the memory module firmly into the slot at an angle and press the memory module down until it clicks into place.

    • If you do not hear the click, remove the memory module and reinstall it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
