Alienware 17 R2 Status-Light Board Replacement

Geschrieben von: Terrence15

Kommentare: 0

Alienware 17 R2 Status-Light Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

8 - 20 Minuten

Einleitung

Werkzeuge

Phillips #0 Screwdriver

Schritt 1

WARNING : Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.
Make sure base panel is removed.
Make sure palm rest is removed.
Lift the latch and disconnect the status-light board to the palm-rest assembly.

Schritt 2

Remove the screws that secure the status-light board to the palm-rest assembly.

Schritt 3

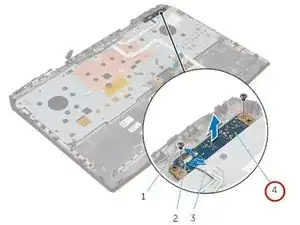

IsNCP5Zws1sKWyyW

Lift the status-light board off the palm-rest assembly.

Schritt 4

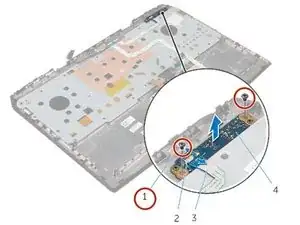

KHCO2U5SKau5xokQ

Align the screw holes on the status-light board with the screw holes on the palm-rest assembly.

Schritt 5

NBO45IdXRDmlOXdT

Replace the screws that secure the status-light board to the palm-rest assembly.

Schritt 6

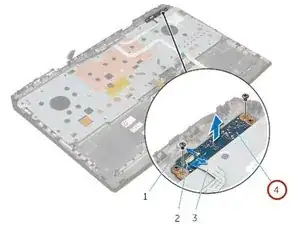

jrqWF3C4jpEwXyUk

Slide the status-light board cable into the connector on the status-light board and press down the latch to secure the cable.

Abschluss

To reassemble your device, follow these instructions in reverse order.
