Alienware 17 R2 Wireless Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

10 - 20 Minuten

Einleitung

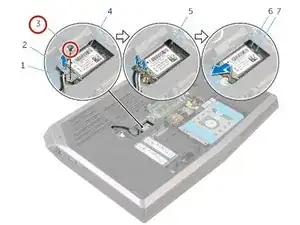

  1. fGbuntGXmJwiEKLc

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

    • Remove the screw that secures the wireless-card bracket and the wireless card to the system board.

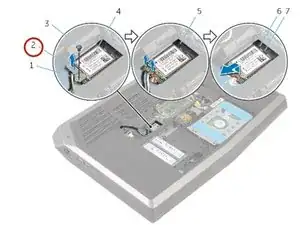

  2. 56cIXsZtZTgOaAHp

    • Lift the wireless-card bracket off the wireless card.

  3. MvIiNRmYHsc2AvD3

    • Disconnect the antenna cables from the wireless card.

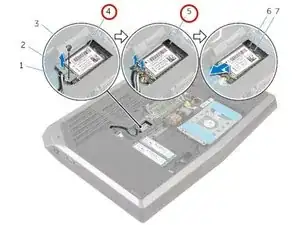

  4. bcTGsdkV2WsroxnN

    • Lift and slide the wireless card from the wireless-card slot.

    • CAUTION: To avoid damaging the wireless card, do not place any cables under it.

    • Align the notch on the wireless card with the tab on the wireless-card slot.

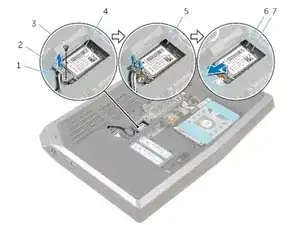

  6. fre4ihTGVPBfkxPP

    • Slide the wireless card at an angle into the wireless-card slot.

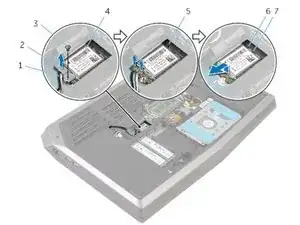

  7. ZbvGyJAoe5x2KKaw

    • Connect the antenna cables to the wireless-card.

    • The following is the antenna-cable color color scheme for the wireless card: Main (white triangle) = White Auxiliary (black triangle) = Black

  8. bLqbOHECMoN1CpYR

    • Align the screw hole on the wireless-card bracket with the screw hole on the wireless card.

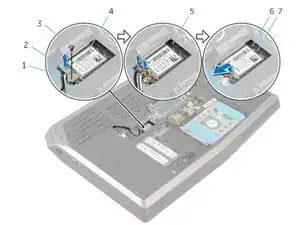

  9. 4nGSylelSbOxZhdA

    • Replace the screw that secures the wireless-card bracket and the wireless card to the system board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
