Alienware 17 R4 Fan Shroud Replacement

Geschrieben von: Hector Mendez III
  • Kommentare: 1
Alienware 17 R4 Fan Shroud Replacement

Schwierigkeitsgrad

Moderate

Schritte

17

Zeitaufwand

20 Minuten

Einleitung

In order to access any other laptop parts for replacements, the fan shroud will need to be removed before the plastic cover shielding the interior. This guide will show you how to remove the fan shroud.

  1. NdSG2LdLeRRBWTAC

    • Use a PH1 screwdriver bit to remove the six M2.5x13 screws (2.4 mm) on the back of the laptop.

    • Use a PH1 screwdriver bit to loosen the one M2x3 screw (1.9 mm).

    • The M2x3 screw (1.9 mm) does not come out completely.

  2. beRHXrgQkAkOvkrd
    beRHXrgQkAkOvkrd
    tXvjyDKKEQkinPcV

    • Pull the base cover up to remove it.

    • If you are having trouble, insert a plastic opening tool into the divots along the laptop's edges to loosen.

    • Removing the cover may require some force.

  3. LXaDIBYgRH41Dcfo
    LXaDIBYgRH41Dcfo
    TPIKGg2O1d3xGlgI
    QmWq143l3qMN5B4S

    • Disconnect the battery connector cable, located on the right side of the laptop, above the hard disk drive.

    • Once you have removed the cable, wait 5-10 minutes to allow the laptop to power down.

    • Failure to remove the battery connector cable properly may damage other parts of the laptop.

  4. b2UbrOj3NF2qvRTp
    b2UbrOj3NF2qvRTp
    AASF1YnfaRS4OhfC
    VRbgCWO1HZVntZRh

    • Use a PH1 screwdriver bit to remove the four M2.5x5 screws (2.4 mm) on the hard disk drive.

  5. EN1WpeWEmHsCQiyC
    EN1WpeWEmHsCQiyC
    I4bKNhZL3eYWRXAZ
    ASHMUmmJ6Bk5BJvQ

    • Gently lift the HDD cable to disconnect it from the laptop.

  6. NJnUYoNLGSyqrSXW
    NJnUYoNLGSyqrSXW
    IEnodJDclrknEWKj

    • Pull the hard drive up to remove.

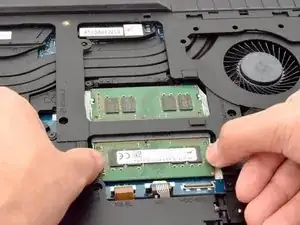

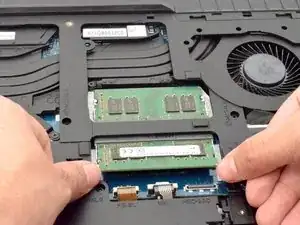

  7. kMMt3VZUHx5UwqEY
    kMMt3VZUHx5UwqEY
    tiBZidYQmVmTrLsn
    URV6mwWDtElFBGsN

    • Move the metal sidings outward to release the RAM card.

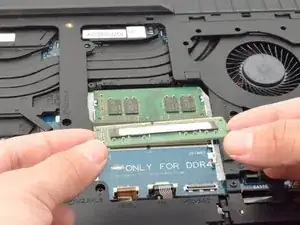

  8. VnQAFYKhS4d6JNeE

    • Slide the RAM card out towards yourself to remove it.

    • Repeat the same step for the RAM card above.

    • Slide the RAM card out carefully to avoid damaging it.

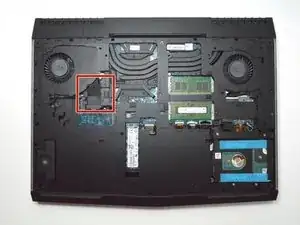

  9. kQKV4ZomFOuoC6Yi

    • Locate the WI-FI card.

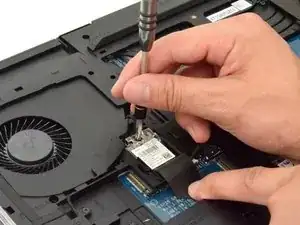

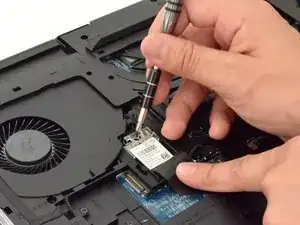

  10. B3VIdBEfhEhe1iyw
    B3VIdBEfhEhe1iyw
    xRfYMJ1C2KSZ5gkF

    • Peel back plastic cover of wi-fi card.

    • Use a PH1 screwdriver bit and remove the one M2x3 screw (1.9 mm)

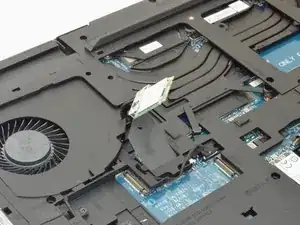

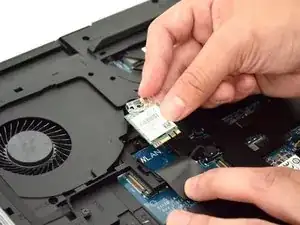

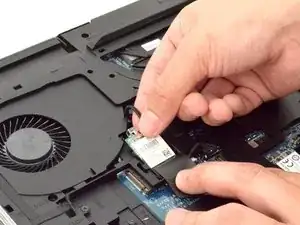

  11. SyGDoAl342FjD1NW
    SyGDoAl342FjD1NW
    JHysfGVustZbXvZf
    o1EhM6hksqYTgBMM

    • Gently undo the clips attached to the wi-fi card.

    • If the clip is not gently removed it is possible that the entire base will be torn off the wi-fi card. You will need to purchase a new wi-fi card if this occurs.

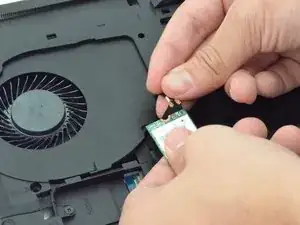

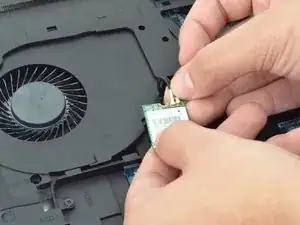

  12. wBphVyQbP12fLZr2
    wBphVyQbP12fLZr2
    dDPSuEnJcteT2iyO

    • Locate the cables that connect the wi-fi card.

    • Gently pull upwards to remove cables and slide the wi-fi card out from its slot.

  13. 6tBUBGne3diFXrDt
    6tBUBGne3diFXrDt
    4g5PFC65csrGP1G2

    • Remove the one M2x3 screw (1.9 mm) using a PH1 screwdriver bit

  14. SDEOrcMhvHPXSGOr
    SDEOrcMhvHPXSGOr
    OJYZmxQu3nSQMGMQ

    • Slide the solid state drive towards yourself to prevent damage to the card.

    How do I copy the contents of the old SSD to a new SSD. For example if I’m booting from my old SSD but want to update to a larger SSD.

    Shouldn’t step 1 be preserving my data? I give you a low score for lack of forethought. Guess another website might have pertinent information.

    Bill From Here -

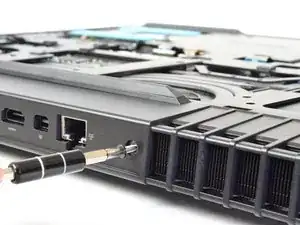

  15. YdYKsNNRTgLI3nQf
    YdYKsNNRTgLI3nQf
    fZEdUpdRkBpPGMyq
    DpkKXYgyjMhHHR5h

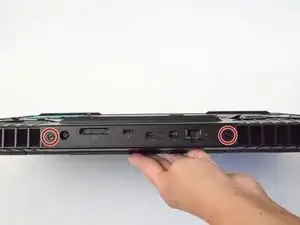

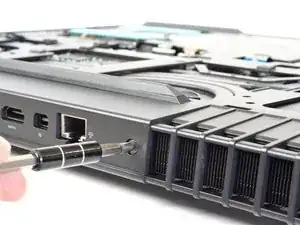

    • Remove the two M2.5x7 screws (2.44 mm) located on the rear panel using a PH1 screwdriver bit.

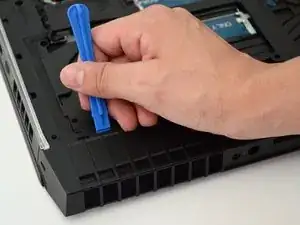

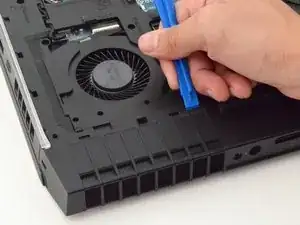

  16. pUH6COLwVPTCVlb2
    pUH6COLwVPTCVlb2
    3g1WfSeFsJNwiMpa

    • Insert the plastic opening tool under the fan shroud to slowly lift it up.

    • Repeat process on the middle and opposite side.

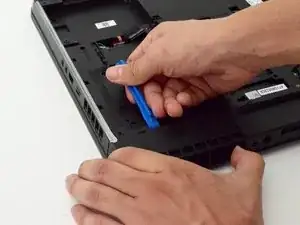

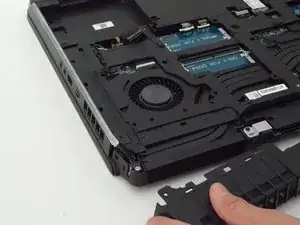

  17. ejdPyntKxA5cQ1I1
    ejdPyntKxA5cQ1I1
    QOneV4XgwdA6mJFp

    • Firmly lift the plastic opening tool and pull the fan shroud towards you.

    • This will take a large amount of force and will not come out easily the first time.

    • Careful not to tear out the piece causing damage to the fan shroud

Abschluss

To reassemble your device, follow these instructions in reverse order.
