Alienware 17 R4 Solid State Drive (SSD) Replacement

Geschrieben von: Hector Mendez III
  • Kommentare: 2
Alienware 17 R4 Solid State Drive (SSD) Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

15 Minuten

Einleitung

This guide will show you how to access and remove the solid state drive (SSD) for your Alienware 17 R4.

  1. NdSG2LdLeRRBWTAC

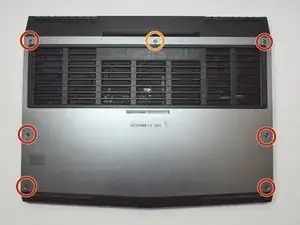

    • Use a PH1 screwdriver bit to remove the six M2.5x13 screws (2.4 mm) on the back of the laptop.

    • Use a PH1 screwdriver bit to loosen the one M2x3 screw (1.9 mm).

    • The M2x3 screw (1.9 mm) does not come out completely.

  2. beRHXrgQkAkOvkrd
    beRHXrgQkAkOvkrd
    tXvjyDKKEQkinPcV

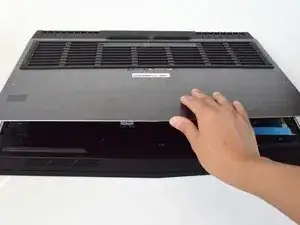

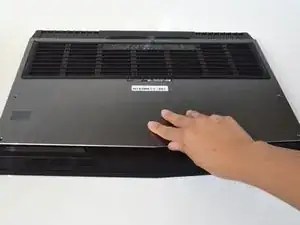

    • Pull the base cover up to remove it.

    • If you are having trouble, insert a plastic opening tool into the divots along the laptop's edges to loosen.

    • Removing the cover may require some force.

  3. LXaDIBYgRH41Dcfo
    LXaDIBYgRH41Dcfo
    TPIKGg2O1d3xGlgI
    QmWq143l3qMN5B4S

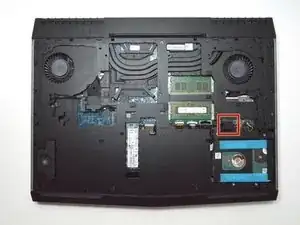

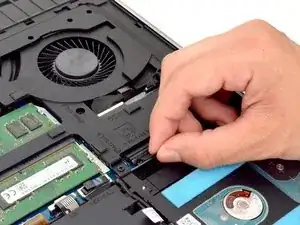

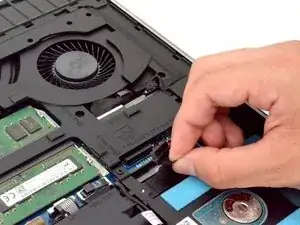

    • Disconnect the battery connector cable, located on the right side of the laptop, above the hard disk drive.

    • Once you have removed the cable, wait 5-10 minutes to allow the laptop to power down.

    • Failure to remove the battery connector cable properly may damage other parts of the laptop.

  4. b2UbrOj3NF2qvRTp
    b2UbrOj3NF2qvRTp
    AASF1YnfaRS4OhfC
    VRbgCWO1HZVntZRh

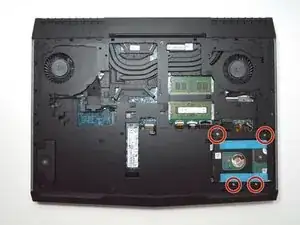

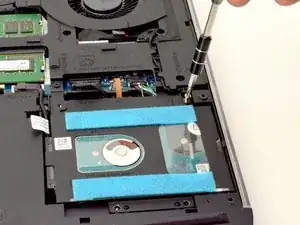

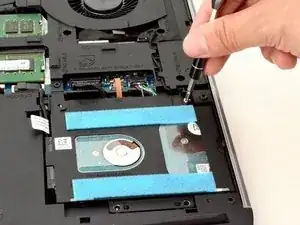

    • Use a PH1 screwdriver bit to remove the four M2.5x5 screws (2.4 mm) on the hard disk drive.

  5. EN1WpeWEmHsCQiyC
    EN1WpeWEmHsCQiyC
    I4bKNhZL3eYWRXAZ
    ASHMUmmJ6Bk5BJvQ

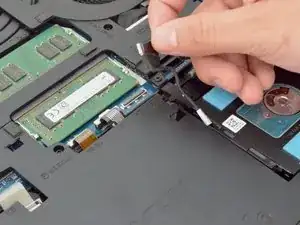

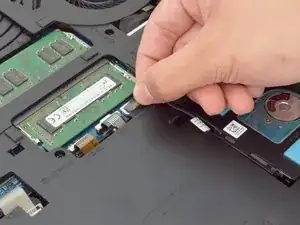

    • Gently lift the HDD cable to disconnect it from the laptop.

  6. NJnUYoNLGSyqrSXW
    NJnUYoNLGSyqrSXW
    IEnodJDclrknEWKj

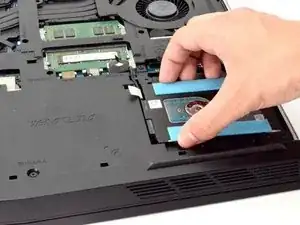

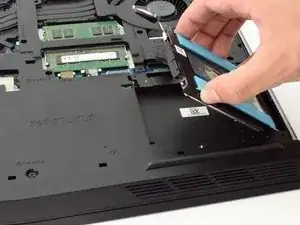

    • Pull the hard drive up to remove.

  7. 6tBUBGne3diFXrDt
    6tBUBGne3diFXrDt
    4g5PFC65csrGP1G2

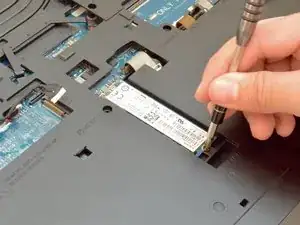

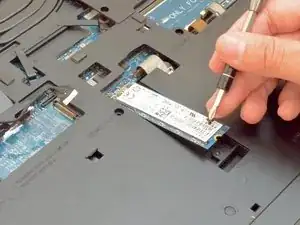

    • Remove the one M2x3 screw (1.9 mm) using a PH1 screwdriver bit

  8. SDEOrcMhvHPXSGOr
    SDEOrcMhvHPXSGOr
    OJYZmxQu3nSQMGMQ

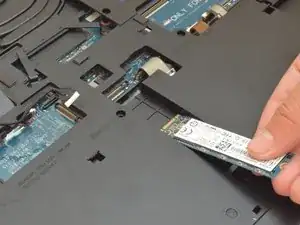

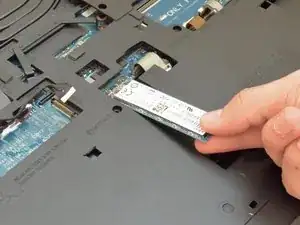

    • Slide the solid state drive towards yourself to prevent damage to the card.

    How do I copy the contents of the old SSD to a new SSD. For example if I’m booting from my old SSD but want to update to a larger SSD.

    Shouldn’t step 1 be preserving my data? I give you a low score for lack of forethought. Guess another website might have pertinent information.

    Bill From Here -

Abschluss

To reassemble your device, follow these instructions in reverse order.
