Alienware 17 R5 Battery Replacement

Geschrieben von: Yubin Qin
  • Kommentare: 1
Alienware 17 R5 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

30 Minuten

Einleitung

This guide will show you how to replace the battery in your Alienware 17 R5 (model number: ALW17C-D3748S) in the case that your battery can no longer hold a charge. In cases where an old battery will prevent the computer from being able to power on, it can be solved by allowing it to charge for a few hours or days depending on how depleted the battery is. If the battery can't hold a charge, or it is very quickly losing its charge after you have charged it, then it will need replaced. So if your computer only turns on while plugged in, and can only stay on while plugged in, then a battery replacement will likely solve your problems.

Detailed model of the computer:

Name: Alienware 17(R5) (ALW17C-D3748S)

CPU: i7 8750H. 2.2GHz

Graphics card: NVIDIA GeForce GTX 1070 OC

Memory capacity: 8G. GDDR5

Maximum memory capacity: 32G

Weight: 4.42Kg

Length: 424mm

Width: 332mm

Thickness: 29.9mm

Shell color: Silvery

Before using this guide, please note that the computer needs to be completely powered off. This can effectively ensure that you will not be threatened by static electricity when replacing batteries.

ESD safety tools are also necessary.

  1. KYaA4kjufHKlUVAD
    KYaA4kjufHKlUVAD
    PGcIhgqWsqRcFHiJ

    • Use a Phillips #0 screwdriver to remove all of the screws in the back cover.

    • If necessary, use a plastic opening tool to avoid damaging the back cover while removing it. Make sure that you are unclipping any clips that may be holding the back cover onto the laptop.

  2. Ry16qmk2UGioM6GK
    Ry16qmk2UGioM6GK
    OYmONLQiijdPAiIS
    2xaq1r2ppFraXfRE

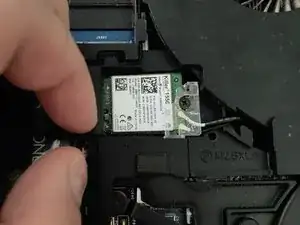

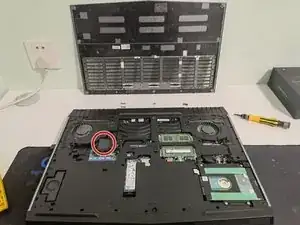

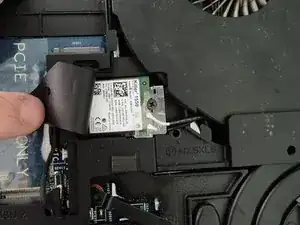

    • Lift up the flap that covers the network card.

    • Use a spudger to undo the two wires that connect the network card to the motherboard.

    • Undo the screw holding the network card in. It will pop out at an angle.

    • Remove the network card.

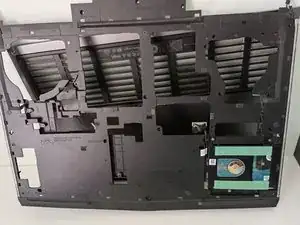

  3. ajuQLaOj6qloswMy
    ajuQLaOj6qloswMy
    55SXTUKEy52sE11a

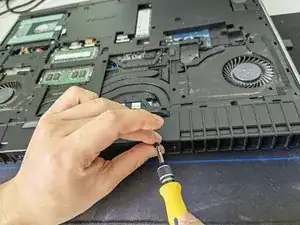

    • Remove the second layer of casing that protects the battery.

    • Make sure not to bend and or damage this layer of casing that protects all of the components while removing it. Remove any screw and or unclip any clip that may be holding it together.

  4. cqtJYow3g2BOG1ya

    • Use a spudger to unplug the battery cable from the motherboard.

    • Be sure to use ESD safe tools when removing the battery cable.

  5. eSUk46dQBBxSaNiK
    eSUk46dQBBxSaNiK
    cXXEyMvr1QU2XSE3

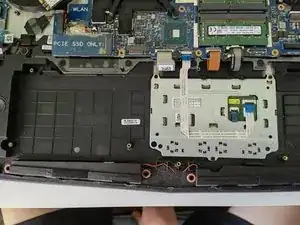

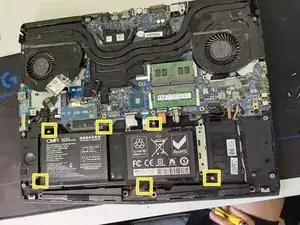

    • Using a Phillips #0 screwdriver, remove the screws holding down the battery.

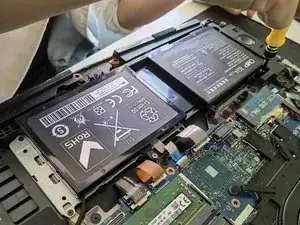

  6. Ab6oVW4q6HbQkwwh
    Ab6oVW4q6HbQkwwh
    34YRGMGANBFZ1KYo
    K2G53eDtTpZQrAyf

    • Place the new battery in the correct position and reinstall the screws that hold the battery in place. Next , connect the cable into the battery connector.

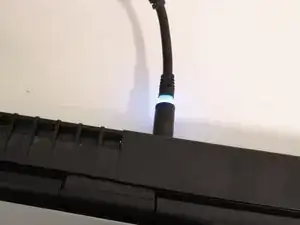

  7. hUWNXkPKndfnRQnX
    hUWNXkPKndfnRQnX
    5vJ6wX5JsrDQwlIx
    BS6LqvwWo2gtEdoV

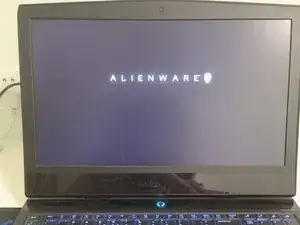

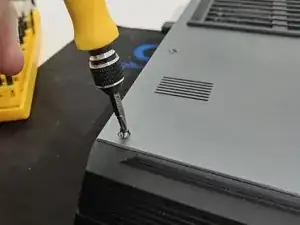

    • Once the battery is installed, reassemble your laptop completely and test your laptop by turning it on.

    • If your laptop does not turn on, disassemble your device and check to make sure that you did not miss anything, skip a step, that all of the connectors and cables are connected and or connected properly, and or that everything is put back together properly.

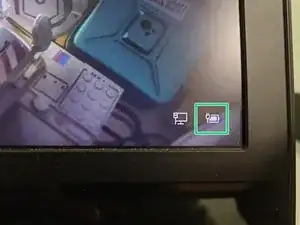

  8. mLLblmcNMQCXDcsE

    • Wait for your computer to boot up and then sign in. Once you are signed in, click on the icon that looks like a battery in the bottom right corner of the screen to check the battery.

    • If the new battery can hold a charge, stays charged for a few hours, and re-enables you to use your laptop without the charger plugged in, then the new battery is working properly.

    These instructions are WAY wrong! It's made to sound like all you have to do is remove a few screws and pry the cover off.

    There are cables that need to be disconnected, the hard drive has to come out, the rear cover where the charger plugs into needs to come off.. In total there are approximately 28 screws that need to come out...

    I strongly suggest you watch how to disassemble it to replace the battery on YouTube!
