Alienware Alpha R2 Solid State Drive Replacement

Geschrieben von: Andrew Pham Garcia
  • Kommentare: 0
Alienware Alpha R2 Solid State Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 - 30 Minuten

Einleitung

The following procedure will guide the reader through replacing the solid state drive (SSD) in the Alienware Alpha R2 desktop computer. The storage drive of a computer is where a computer’s operating system is stored, along with all of the data on the computer. Whenever a computer is booted, the operating system is loaded from the storage drive.

You might be wondering, “why replace a solid state drive”? If your computer is constantly freezing or if there is a long interval of a blank screen when turning on your computer, it is probably due to a faulty storage drive. Fortunately, a replacement solid state drive can return your computer back to its former glory, making your computer boot and function much faster, and saving you a lot time and frustration.

Replacing a faulty drive with a functional solid state drive will increase the speed of your computer, as it will be able to both load the OS faster, resulting in a quicker boot time, and also access files faster, resulting in a snappier response time overall.

  1. tnT3sZWe4NFxfmYs
    tnT3sZWe4NFxfmYs
    KnV3bodo3M5RkMvx

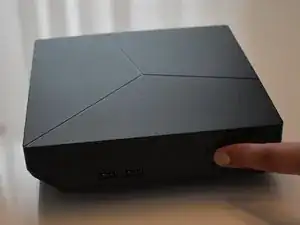

    • Unplug the device.

    • Press the power button and hold it for approximately 10 seconds to discharge any power stored in the device.

  2. qkssEY1Xg3mhqUfJ
    qkssEY1Xg3mhqUfJ

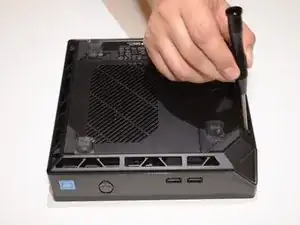

    46pB3N4YaAKpoorF

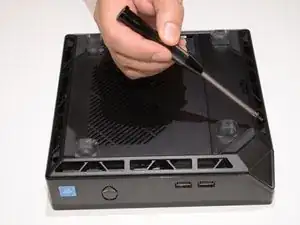

    uF4owknSMNwlO56x

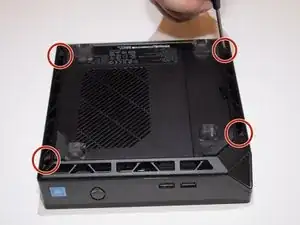

    • Flip the PC upside down.

    • Unscrew the case screws from each corner of the bottom of the case using a Phillips #2 screwdriver.

  3. KUeMYkRqPdxQTD3d
    KUeMYkRqPdxQTD3d

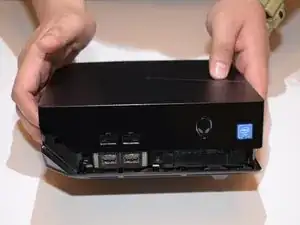

    pJ4vyLOKrrVKSqWn

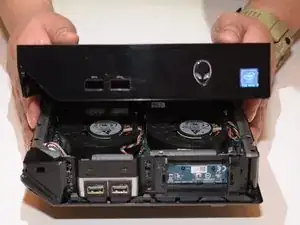

    LebZOXdi4JapLCl1

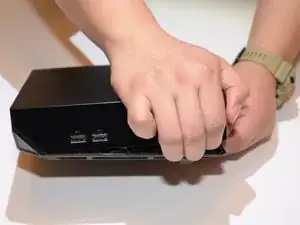

    • Pry open the case by splitting the seam at the bottom edge of the PC.

    • Lift the top half of the case to seperate the cover from the rest of the PC.

  4. PZdFBKE2psyklMJM
    PZdFBKE2psyklMJM

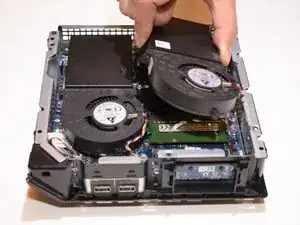

    CENJydUBdCW2CB1U
    tI1CK6KIdHoN3iiH

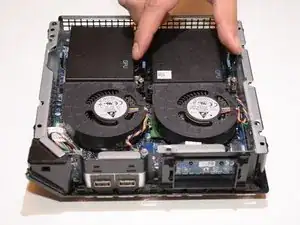

    • Press the two tabs located on each side of the CPU fan cover.

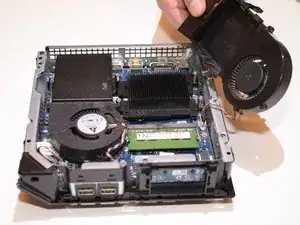

    • Lift the fan upwards and out to remove it.

    • (Optional) Pull the CPU's fan cable from its socket on the motherboard.

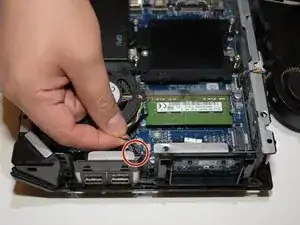

  5. jluZHmWZqGCsUuHb
    jluZHmWZqGCsUuHb
    NwwIhmpIfxeNsMwA
    LpYqbuEUbeIJmvgf

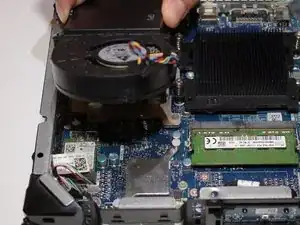

    • Disconnect the GPU fan cable from its socket on the motherboard.

    • Press the side tabs of the GPU fan case.

    • Simultaneously lift the fan cover up and forward to remove.

  6. NNd2ZrNNYOPMyxiY
    NNd2ZrNNYOPMyxiY

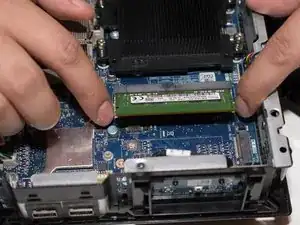

    Ctg4IiOBrmeycLMb

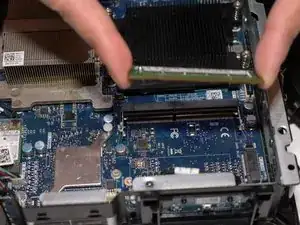

    xhGJEtrS3PHvuHSX

    • Installing the SSD card without removing the RAM could cause grinding of the edges between the RAM and SSD, resulting in damaged components. However, it is possible to skip this step and move straight to the SSD installation.

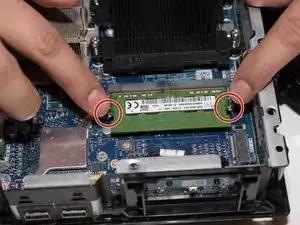

    • Pry the tabs on either side of the RAM holder away from each other with your fingers.

    • The RAM should pop upwards to rest at an angle to the motherboard.

    • Lift forwards and upwards to remove RAM from its slot on the motherboard.

  7. pUHJfQtDP1yFocRR
    pUHJfQtDP1yFocRR
    AxbORilSUw1HXEQq
    eNdoE1B2IToVV6Ox

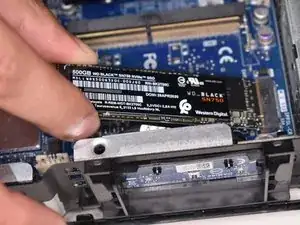

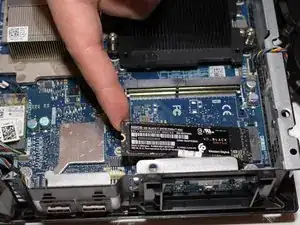

    • Face the SSD upwards.

    • Line up the pins on the SSD with the M2 slot on the motherboard.

    • Gently push the SSD into the slot where the pins line up.

    • Gently press the SSD towards the motherboard.

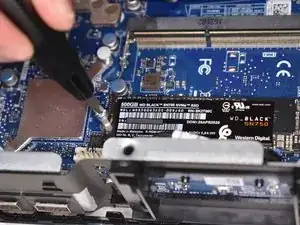

    • Screw in the retaining screw for the SSD using a Phillips #1 screwdriver.

    • While possible to install the SSD card without removing the RAM, it is recommended to remove the RAM card in order to prevent damage to either component.

Abschluss

Congratulations, You have now successfully upgraded your Hard Drive Disk to a Solid State Drive. To reassemble, follow the steps in reverse order.
