Alienware M11x Display Assembly Replacement

Schwierigkeitsgrad

Easy

Schritte

11

Zeitaufwand

20 - 25 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Display Assembly.

  1. gaiO4jPB41QESmRW

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

    • NOTE: Dell or Alienware does not guarantee compatibility or provide support for hard drives from sources other than Dell.

    • NOTE: If you are installing a hard drive from a source other than Dell or Alienware, you need to install an operating system, drivers, and utilities on the new hard drive.

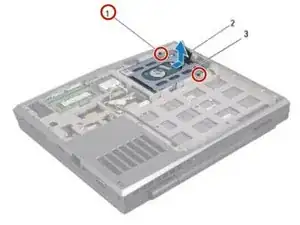

  2. Jl4UTRKf1FjTK4ER

    • Loosen the two captive screws that secure the hard-drive assembly to the computer base.

  3. RyX4SUAbGN6l3Iai

    • Using the pull-tab, pull the hard-drive assembly to disconnect the hard-drive assembly from the connector on the system board.

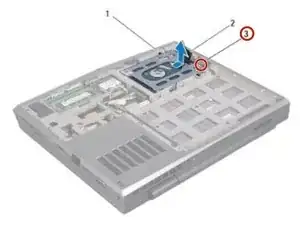

  4. eOv45y3cxv2BmKrA

    • Lift the hard-drive assembly out of the computer base.

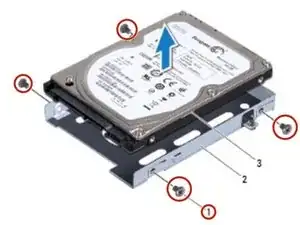

  5. ICXINlPGMswrEiwH

    • Remove the four screws that secure the hard drive to the hard-drive bracket.

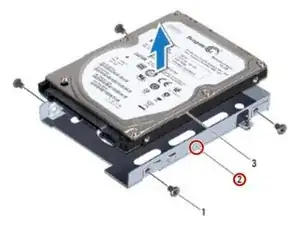

  6. YbFNAAfn1pckH2lR

    • Lift the hard drive away from the hard-drive bracket.

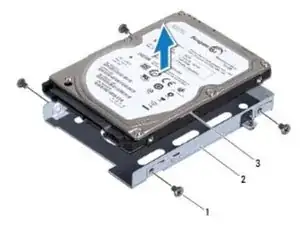

  7. VCdXKNMHAp1ysXDh

    • Place the NEW hard drive in the hard-drive bracket.

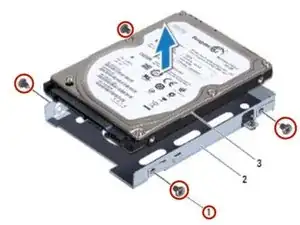

  8. pcnIDRAUnJ31PqGJ

    • Replace the four screws that secure the hard-drive to the hard-drive bracket.

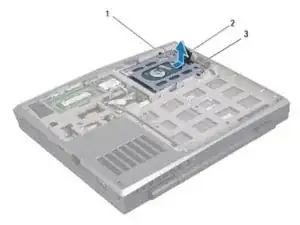

  9. pvoqdhPK1LtJvHJk

    • Place the hard-drive assembly in the computer base.

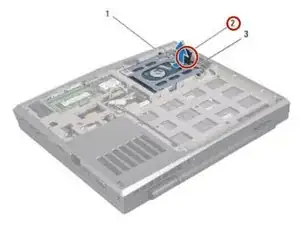

  10. QuKJKU1BGvoa6dDV

    • Use the pull-tab to push the hard drive assembly and connect it to the connector on the system board.

  11. xmxV4WRxcInaA5rS

    • Tighten the two captive screws that secure the hard-drive assembly to the computer base.
