Alienware M11xR2 Base Cover Replacement

Geschrieben von: darrius
  • Kommentare: 0
Alienware M11xR2 Base Cover Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

10 - 15 Minuten

Einleitung

How to remove and replace the Base Cover.

  1. tQReHLEFkEiKnCig

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

    • Turn the computer over.

  2. sQka26xi6xXWnDgA

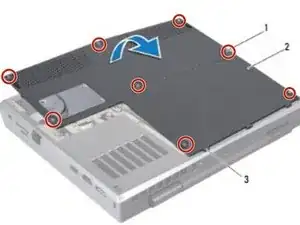

    • Loosen the eight captive screws that secure the base cover to the computer base.

  3. lyWTgahv5bQEMoMO

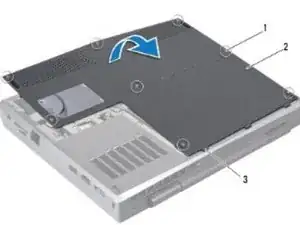

    • Lift the base cover off the computer base.

  4. KKnhMKVvmQlE1yiT

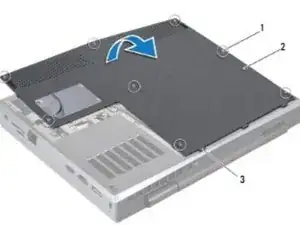

    • Align the tabs on the NEW base cover with the slots on the computer base and place the base cover in position.

  5. 6eEySn6kjEI6nwIc

    • Tighten the eight screws that secure the base cover to the computer base.
