Alienware M11xR2 Coin-Cell Battery Replacement

Geschrieben von: darrius
  • Kommentare: 0
Alienware M11xR2 Coin-Cell Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

4 - 8 Minuten

Einleitung

How to remove and replace Coin-Cell Battery

  1. tQReHLEFkEiKnCig

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

    • Turn the computer over.

  2. sQka26xi6xXWnDgA

    • Loosen the eight captive screws that secure the base cover to the computer base.

  3. lyWTgahv5bQEMoMO

    • Lift the base cover off the computer base.

  4. KKnhMKVvmQlE1yiT

    • Align the tabs on the NEW base cover with the slots on the computer base and place the base cover in position.

  5. 6eEySn6kjEI6nwIc

    • Tighten the eight screws that secure the base cover to the computer base.

  6. cuXEFao6EiTVBSW2

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

    • Disconnect the coin-cell battery cable from the connector on the system board.

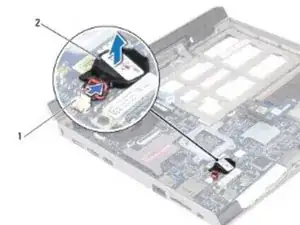

  7. fqNYpQFFMoGulo11

    • The coin-cell battery is glued to the system board. Using a plastic scribe, pry the coin-cell battery from the system board.

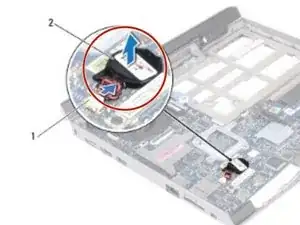

  8. e3UJLAXAQNtg1NsN

    • Use the adhesive on NEW the coin-cell battery and adhere it to the system board.

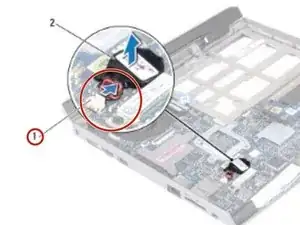

  9. SOmsfGqhkrql3dry

    • Connect the coin-cell battery cable to the connector on the system board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
