Alienware M11xR2 Memory Modules Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Alienware M11xR2 Memory Modules Replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

4 - 8 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Memory Modules.

  1. ccFwrAumQEDktNVD

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer)

    • Remove the two screws that secure the battery pack to the computer base.

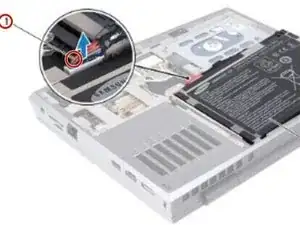

  2. ShRh4cSpkNPEbmTt

    • Disconnect the battery pack cable from the connector on the system board.

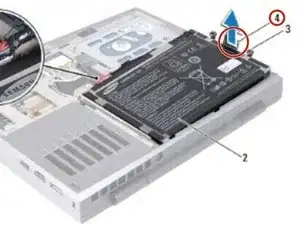

  3. hEXR22FjTWCnDipQ

    • Using the pull-tab, lift the battery pack off the computer base.

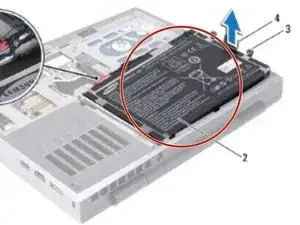

  4. gAvFIIi4LN1IQVBJ

    • Place the NEW battery pack in the battery bay and replace the two screws that secure the battery pack to the computer base.

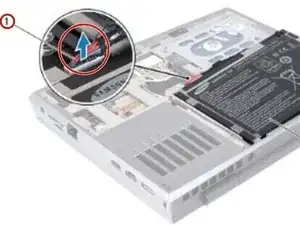

  5. wZvFqkpyqI5VC4fY

    • Route the battery pack cable in the routing guide

  6. 5Wlo6KyRTUQ3Fxry

    • Connect the battery pack cable to the connector on the system board.

  7. QhtAeUChEKLaIJey
    QhtAeUChEKLaIJey

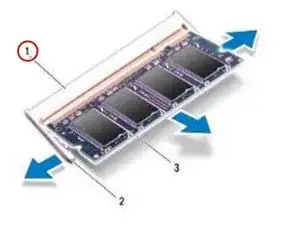

    64YNsoUGEvaYsBIi

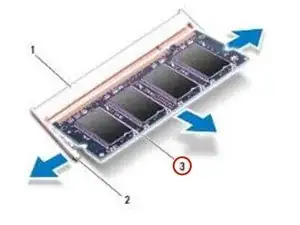

    4Vlcv3TBJSxqV5DN

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

    • CAUTION: To prevent damage to the memory-module connector, do not use tools to spread the memory module securing clips.1memory-module connector2securing clips (2) 3memory moduleNOTE: If you need to install memory modules in two connectors, install a memory module in the lower connector before you install a memory module in the upper connector.

    • Use your fingertips to carefully spread apart the securing clips on each end of the memory-module connector until the memory module pops up.

  8. sa63CEWDECLWKnfK
    sa63CEWDECLWKnfK

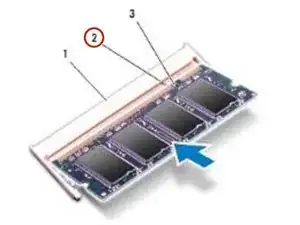

    mI2wLRaTfhkiP65l

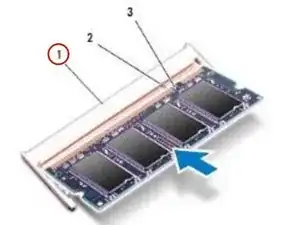

    G1tnsChpqL6FRkaQ

    • NOTE: If you need to install memory modules in two connectors, install a memory module in the lower connector before you install a memory module in the upper connector.

    • Align the notch in the NEW memory module with the tab in the memory-module connector.

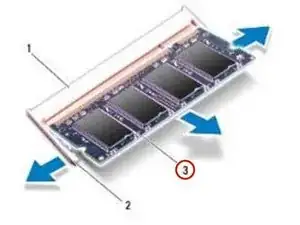

  9. eSWCRQfXhdbbAGWu
    eSWCRQfXhdbbAGWu

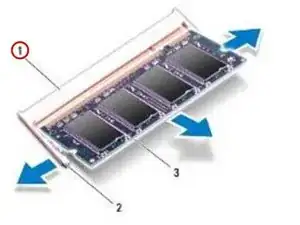

    ISpK25AZZRQgnIXw

    • Slide the memory module firmly into the connector at a 45-degree angle, and press the memory module down until it clicks into place. If you do not hear the click, remove the memory module and reinstall it.

    • NOTE: If the memory module is not installed properly, the computer may not boot.

Abschluss

To reassemble your device, follow these instructions in reverse order.
