Alienware M14x R2 Wi-Fi Card Replacement

Geschrieben von: angel ventura
  • Kommentare: 1
Alienware M14x R2 Wi-Fi Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

5 - 8 Minuten

Einleitung

This guide will show you how to safely remove the Wi-Fi card from the laptop. In order to remove the Wi-Fi card you need to first remove the battery.

  1. woUoVXuY4LfnMMQA

    • Turn the computer off.

    • Disconnect the charging cable from the computer.

    • Failure to unplug the charging cable could result in electric shock and serious injury.

    • Flip the computer upside down.

  2. i1yGLvNOQHUOAPKK
    i1yGLvNOQHUOAPKK
    XLgPdKYiTLxiOHdU
    lgPXQgoW4Fpd1Cux

    • Loosen the two 6.35 mm size 1 Phillips screws on the back cover.

    • The two screws are spring loaded and will not separate from the cover.

    • Slide the back cover towards you and then lift upwards to remove.

  3. XmuUYDBhhSeSPR4G

    • Loosen the two 6.35 mm size 1 Philips screws attaching the battery to the laptop.

    • The two screws are clipped into the battery and will not detach.

  4. vAlCcXCyQQXTOZNL
    vAlCcXCyQQXTOZNL
    jkBQV3UchA4xGHIO
    KrFDqULjTNjNpHTv

    • Pull up on the black tab on the battery to reveal the connection between the battery and laptop.

    • Pull up on the white connector to disconnect it from the laptop.

    • The battery is now free to remove from the laptop and can be set aside.

  5. swvRDIhhqnCFXh2G
    swvRDIhhqnCFXh2G

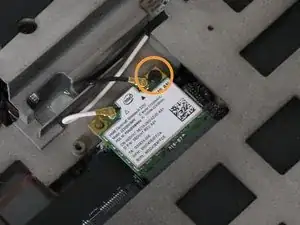

    yRtbNwgfelUyv5jW

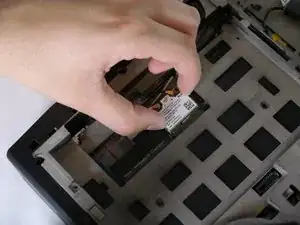

    ZQOcVQHVRlboatXB

    • Locate the wi-fi card underneath the battery and unscrew the 3.175 mm size 1 screw.

    • Lift the wi-fi card up and away from the laptop for easier access and handling of the wi-fi card.

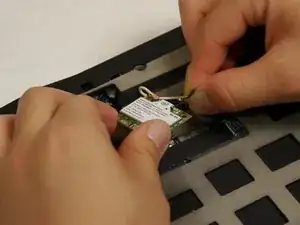

  6. WjUbiaJaeyY5Yxpt
    WjUbiaJaeyY5Yxpt

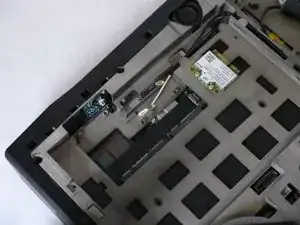

    ibB6aS2NRmMyqSRf

    • Lift the gold connectors at the end of each wire up and away from the wi-fi card to detach both antennas, which are the black and white cables, from the wi-fi card.

    • Set aside the now free wi-fi card.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

angel ventura

Mitglied seit: 30/09/13

177 Reputation

Ein Kommentar

Fantastic.

I have replaced many things in my Alienware M14x, but am now purchasing a wireless AC/Blutooth adapter from Amazon. Your diagram allowed me to check the new card form factor with the original "Killer Network" one that shipped with my laptop in 2011.

Great pictures and great guide!

Rob MacGregor -
