Alienware M14xR2 Hard Drive Replacement

Geschrieben von: Connor Bovee
  • Kommentare: 0
Alienware M14xR2 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

5 - 10 Minuten

Einleitung

This guide will show you how to safely access and replace the hard drive for the Alienware M14xR2 laptop. Before replacing the hard drive you will need to remove the battery and the CD drive.

  1. woUoVXuY4LfnMMQA

    • Turn the computer off.

    • Disconnect the charging cable from the computer.

    • Failure to unplug the charging cable could result in electric shock and serious injury.

    • Flip the computer upside down.

  2. i1yGLvNOQHUOAPKK
    i1yGLvNOQHUOAPKK
    XLgPdKYiTLxiOHdU
    lgPXQgoW4Fpd1Cux

    • Loosen the two 6.35 mm size 1 Phillips screws on the back cover.

    • The two screws are spring loaded and will not separate from the cover.

    • Slide the back cover towards you and then lift upwards to remove.

  3. XmuUYDBhhSeSPR4G

    • Loosen the two 6.35 mm size 1 Philips screws attaching the battery to the laptop.

    • The two screws are clipped into the battery and will not detach.

  4. vAlCcXCyQQXTOZNL
    vAlCcXCyQQXTOZNL
    jkBQV3UchA4xGHIO
    KrFDqULjTNjNpHTv

    • Pull up on the black tab on the battery to reveal the connection between the battery and laptop.

    • Pull up on the white connector to disconnect it from the laptop.

    • The battery is now free to remove from the laptop and can be set aside.

  5. ISb4cK32cli1iiDN
    ISb4cK32cli1iiDN
    iQMNkKhgXMCuRSVd
    RVgPbTgFZmm3UTGB

    • Unscrew the four 6.35 mm size 1 screws.

    • Pull up on the end of the orange tab to detach it from the white connector.

    • Lift the optical drive up and out of the laptop and set it aside.

  6. ew6KaQ62xRy1rsjy
    ew6KaQ62xRy1rsjy
    j3xUSjJvGvmLaQGd

    • Loosen the three 6.35 mm size 1 screws to release the hard drive from the rest of the laptop.

    • The screws are spring loaded and will not come loose from the hard drive assembly.

    • Pull up on the black tab gently as there is still a cable attaching the hard drive to the computer.

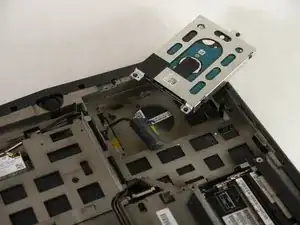

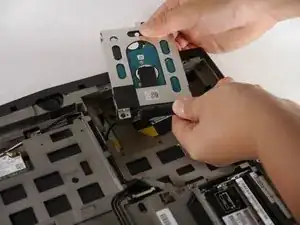

  7. ms4uyJ1FAeHLwLGM
    ms4uyJ1FAeHLwLGM
    KwwLtbqSQu3K1wTG

    • Pull the connector that is attached to the cable at the end of the hard drive out and away from the hard drive to detach it.

    • Set aside the now disconnected hard drive.

Abschluss

To reassemble your device, follow these instructions in reverse order.
