Alienware M15x Display Assembly Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Alienware M15x Display Assembly Replacement

Schwierigkeitsgrad

Easy

Schritte

10

Zeitaufwand

15 - 30 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Display Assembly.

  1. 4iyDMVJsFJQN2TMU

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on the back of the computer).

    • Remove the two screws from the battery bay.

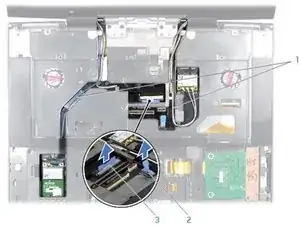

  2. xhSMIph5UMXLn5xU

    • Turn the computer top side up and open the display as far as possible.

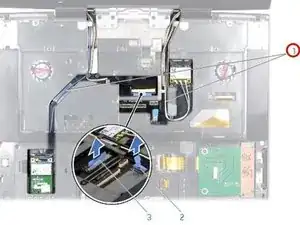

  3. njwBRlOACLknPqh2

    • Disconnect the antenna cables from the respective Mini-Cards and remove these cables from their routing guides.

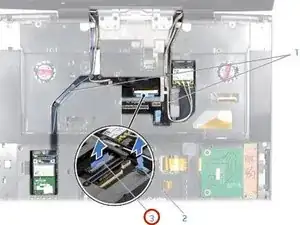

  4. COFTKNdTaijgTjSI

    • Disconnect the display cable and the camera cable from the respective 12. system board connectors, and remove these cables from their routing guides.

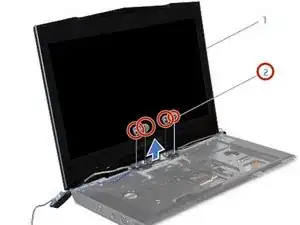

  5. OakcqYFcZbpoFQWr

    • Remove the four screws (two from each hinge) that secure the display assembly to the computer base.

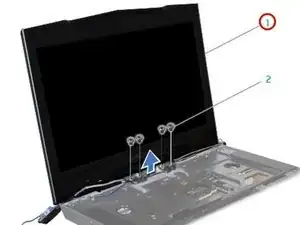

  6. tl1agjeverWPW2ZO

    • Tilt the display assembly towards the computer base at a 45-degree angle and lift the display assembly off the computer.

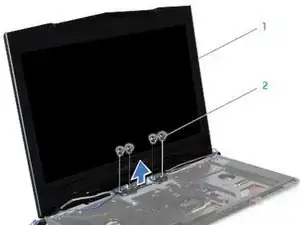

  7. vE4B4wBGPYPxcKJA

    • Align the screw holes on the display hinges with the screw holes on the computer base.

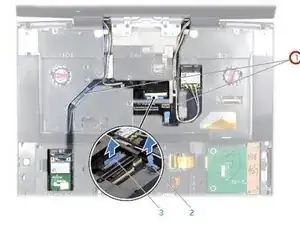

  8. OIhqkjOKsMajFDBY

    • Route the Mini-Card antenna cables through the routing guides and connect them to the respective Mini-Cards.

  9. q3DvgsmZyFeqrCTu

    • Route the display and camera cables through the routing guides and connect them to the system board connectors.

  10. XA2SXL5PTRqGkdEu

    • Replace the two screws in the battery bay.

Abschluss

To reassemble your device, follow these instructions in reverse order.
