Alienware M15x GPU Replacement

Geschrieben von: Tomas Kronmark
  • Kommentare: 0
Alienware M15x GPU Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

20 Minuten

Einleitung

If you are experiencing issues playing certain games or frequently see a blue error screen, this might be because the graphics processing unit (GPU) is faulty, meaning it is time to replace it. This guide will help the user replace the GPU on the Alienware M15x laptop. Several steps involve unscrewing tiny screws from the laptop; please ensure that you keep all screws in a secure location as they will be used to rebuild the laptop.

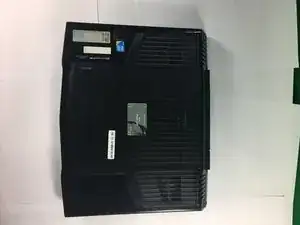

  1. 3QVKQC1dFOYWAeIa

    • Turn the laptop over so that the bottom is facing upward.

  2. WnqZuj6Q3b3REvCH

    • Release the battery latch and flip the battery out.

  3. ljaRWFgQMqIGyMFj
    ljaRWFgQMqIGyMFj
    MyBtmlEFqNTYUSjf

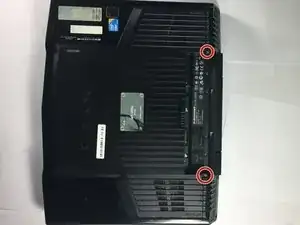

    • Remove the two 4mm screws using a Phillips #1 screwdriver.

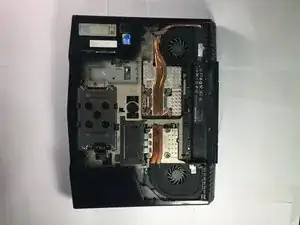

    • Remove the compartment door by sliding it away from the battery.

  4. IG6JmMBMRoHGosVA

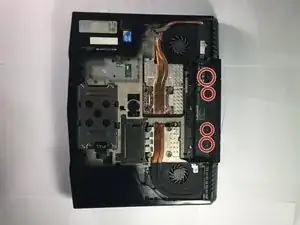

    • Remove the four 4mm screws with the Phillips #1 screwdriver.

  5. kr2lZcNG2JiVuOZA

    • Position the laptop vertically so that the hinge is facing up and the laptop is slightly open toward the ground

    • The laptop position should resemble an upside-down V shape.

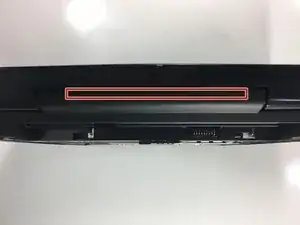

    • Locate the panel and pry open using a plastic opening tool.

  6. TCY5CND2fbALjI5k
    TCY5CND2fbALjI5k
    E2UNWo2AcRYoYdNe
    b4S3hm2bLZACRb2j

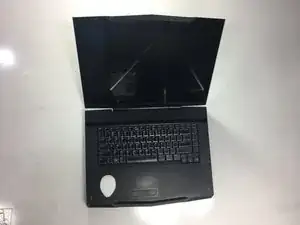

    • Position the laptop normally, with the bottom on the ground and the screen flipped up towards you.

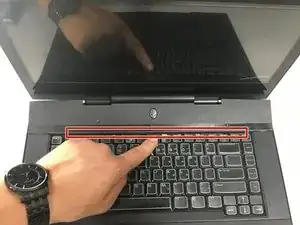

    • Lift the power button panel using the plastic opening tool.

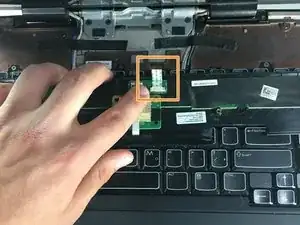

    • Disconnect the ribbon cable by using tweezers to unclip the two small black clips. Remove power button panel.

  7. VBbAKUIvYdXq5PJj

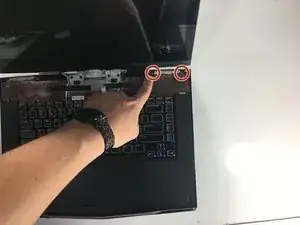

    • Remove the two 4mm screws with a Phillips #1 screwdriver.

  8. VmYplWnkWUMUDAuj
    VmYplWnkWUMUDAuj
    HZZHXqZvZEOPydax

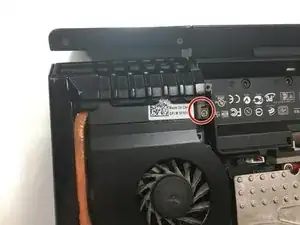

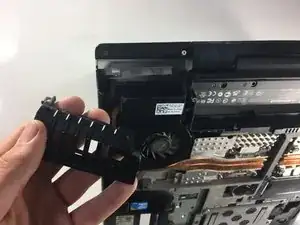

    • Use a Phillips #1 screwdriver to remove the 4mm screw from the exhaust port cover.

    • Remove the exhaust port cover entirely.

  9. ZQdUA4xlQf3igZvH
    ZQdUA4xlQf3igZvH
    VdiXKjnHDAYkZ2qL
    OiVeeMmYSmxlysVE

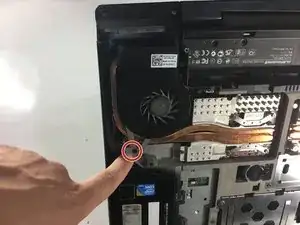

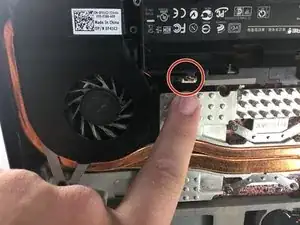

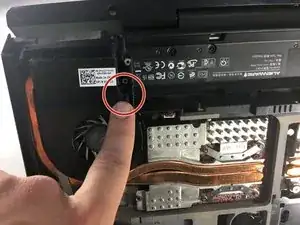

    • Use a Phillips #0 screwdriver to remove the two 3mm screws holding the fan in place, then unclip the electrical connection using tweezers.

  10. 4ELaJYAaTFmYVkVv

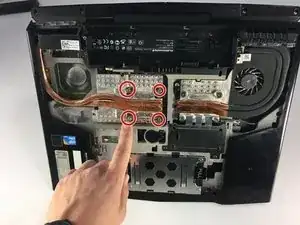

    • Remove the heat sink by loosening the 4 screws with a Phillips #0 screwdriver.

  11. aXEKYHDVdBqefX6P

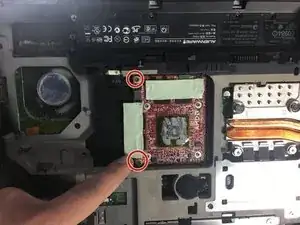

    • Use a Phillips #0 screwdriver to remove the two screws.

    • Remove the GPU from the laptop.

    • When replacing the GPU, it is important to reapply thermal paste in a small line along the length of the chip.

Abschluss

To reassemble your device, follow these instructions in reverse order.
