Alienware M15x Hard Drive Replacement

Geschrieben von: Gabe
  • Kommentare: 1
Alienware M15x Hard Drive Replacement

Schwierigkeitsgrad

Very easy

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

Upgrade your hard drive for more storage space.

  1. BMcScgYtCifIAIrw

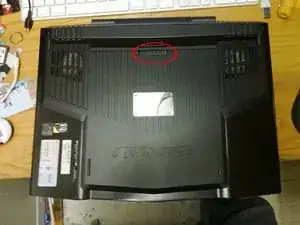

    • First, take off the battery by moving the latch to the left and pulling it up.

  2. FWZXkmyNQTayiLXP
    FWZXkmyNQTayiLXP
    jNDSKV2mXar2ZGXY
    mTlVPdqhk2YFYOMY

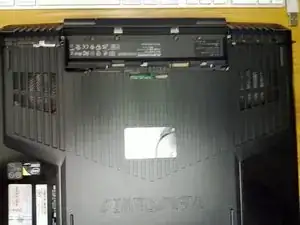

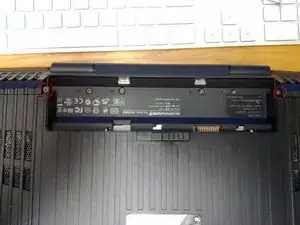

    • Then unscrew the two Phillips screws.

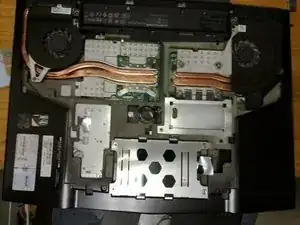

    • Pull the cover down, then up, revealing the internals

  3. MfnYKsfnrNEtnwsr
    MfnYKsfnrNEtnwsr
    DsDhwRQQeQXmuWYD

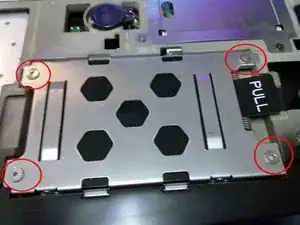

    • Unscrew the four screws indicated

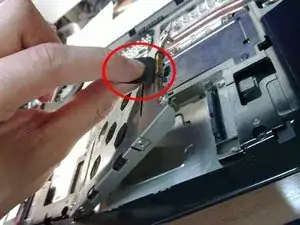

    • Pull on the tab that says "Pull" and remove the Hard Drive

  4. G5ZKMLMNWImmTRWw
    G5ZKMLMNWImmTRWw
    xfGQCktMnQrqAaXq

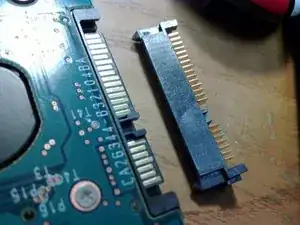

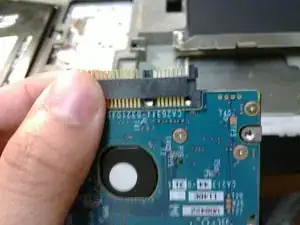

    • With even pressure on both sides, take off the SATA converter and then connect it to the drive you would like to replace it with.

Abschluss

To reassemble your device, follow these instructions in reverse order.
