Alienware M15x RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

5 Minuten

Einleitung

This guide will explain how to carefully and safely remove the RAM from an Alienware M15x laptop.

  1. KNadbJ2gEtTxIdaH
    KNadbJ2gEtTxIdaH
    s631b5AtwvKGOcaP
    eqR1LpVgZGUd4NwG

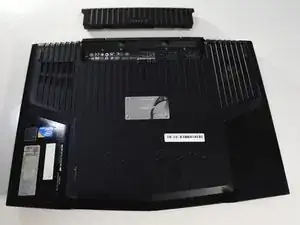

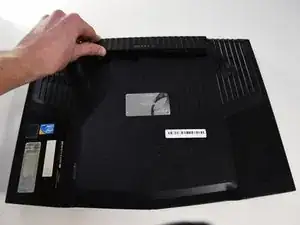

    • Remove the battery by sliding the latch to the left and pulling the battery up.

  2. 6NSM2tnYCsQJXROV
    6NSM2tnYCsQJXROV
    4ufvmVCkAT6Gjm3x

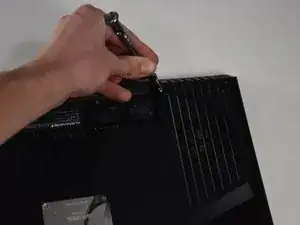

    • Remove the two 4-mm screws that hold the compartment door to the rest of the computer using a PH#0 screwdriver tip.

  3. DshXcP2iSBWDjuL3
    DshXcP2iSBWDjuL3
    cNTDOJkhGGEliQ1F
    EQEmAlXroJPvjU3I

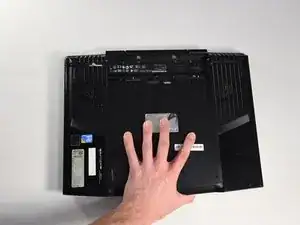

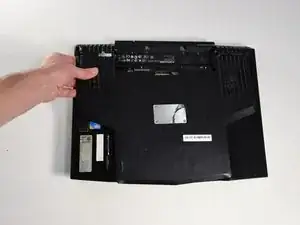

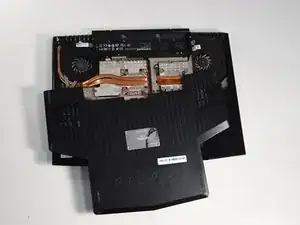

    • Slide the compartment door towards the front of the computer and lift.

  4. tyuik2o4B3Qkm3PI

    • Remove the two indicated screws for the RAM cover.

  5. 5UXqTsKyX4LrUKbk

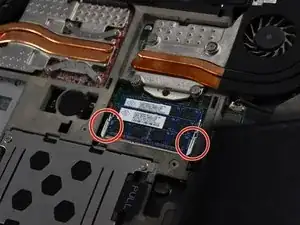

    • Push the two retaining clips on either side of the ram outwards, allowing the RAM chip to pop up.

  6. Dhyk2KKo3XX6iu5S

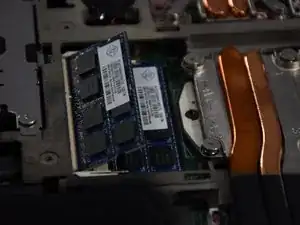

    • Pull it straight out of its pocket.

  7. fmwE4VqieFOuWL1L

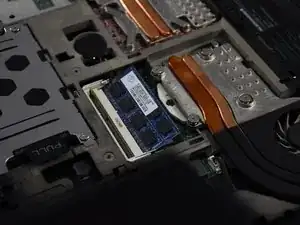

    • Repeat the same process if there are additional RAM chips.

Abschluss

To reassemble your device, follow these instructions in reverse order.
