Alienware M15x RAM Replacement

Geschrieben von: Gabe
  • Kommentare: 1
Alienware M15x RAM Replacement

Schwierigkeitsgrad

Very easy

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

Upgrade your RAM for an instant increase in speed.

The M15x uses DDR3 1333MHz memory.

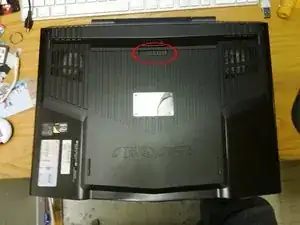

  1. wfRYhYJXJh2PBhaM

    • First, take off the battery by moving the latch to the left and pulling it up.

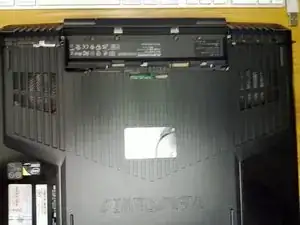

  2. Wd4Dnsr1lQrjKXK2
    Wd4Dnsr1lQrjKXK2
    1yQ4d2CfPCePuRLB
    JAPuOtXZTHmiIIKU

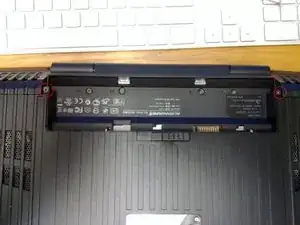

    • Then unscrew the two Phillips screws.

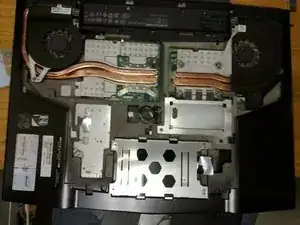

    • Pull the cover down, then up, revealing the internals

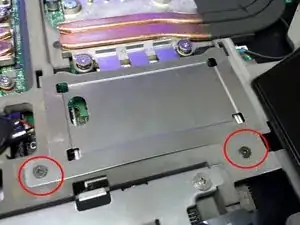

  3. TBYQg1EHHiSB1LZV

    • Unscrew the two screws indicated

  4. yZJRQOpHbbdWTOds
    yZJRQOpHbbdWTOds
    R1BFLi64WLoQ35Vf

    • Release the tabs on each side of the chip by simultaneously pushing each tab away from the RAM.

    • These tabs lock the chip in place and releasing them will cause the chip to "pop" up.

    • After the RAM chip has popped up, pull it straight out of its socket.

    • Repeat this process if a second RAM chip is installed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
