Alienware M17-R1 Hard Drive Replacement

Geschrieben von: LXA054
  • Kommentare: 2
Alienware M17-R1 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

Your hard drive may have specific instructions on how to mount it. This may involve reorientation of the hard drive in order to fit the socket.

  1. IDm41KjMlB5RUP4h

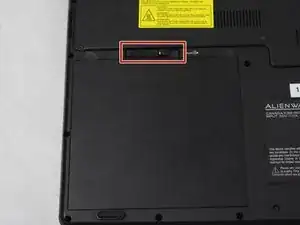

    • Push the slider until the battery is released from its socket.

  2. TBFNPmG6wBOVMQNE

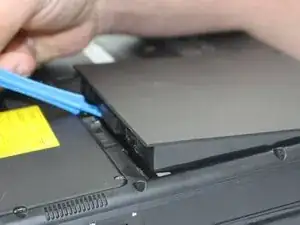

    • Lift the battery using your fingers.

    • It may be necessary to use a plastic opening tool.

  3. LDgvOQd1CSXVVyR5

    • Place the laptop face down on a hard, flat surface to have a clear view of the bottom of the computer.

  4. syBUmEdRWWVXKarg

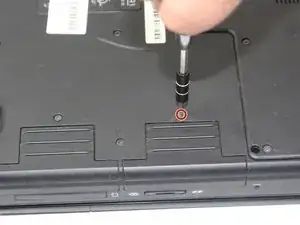

    • Once you have located the hard drive, you will then need to remove the 3 mm screw using the Phillips #1 screwdriver.

  5. XqekeOuq5JF5XEd4

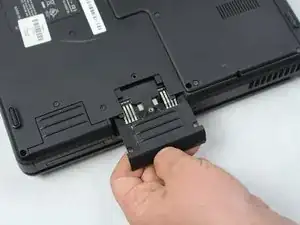

    • Gently slide the hard drive away from the computer using the built in ridges.

Abschluss

To reassemble your device, follow these instructions in reverse order.
