Einleitung
If your screen is damaged or doesn't work like it used to, use this guide to remove and replace your display assembly.
-
-

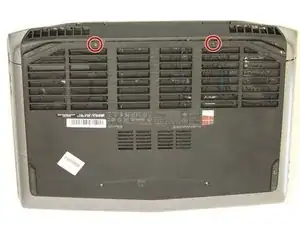

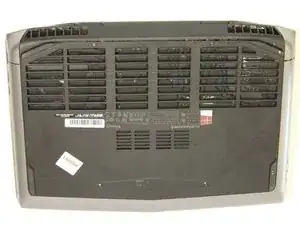

Remove the two 3.5 mm Phillips #0 screws holding the cover in place.
-
Slide cover forward then carefully lift up.
-
-
-

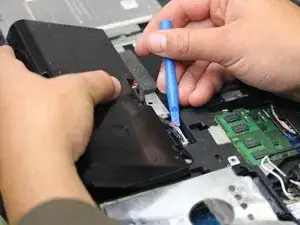

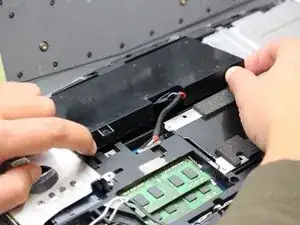

Carefully use the Plastic Opening Tool to unplug the battery.
-
Lift the battery up and out to remove.
-
-
-

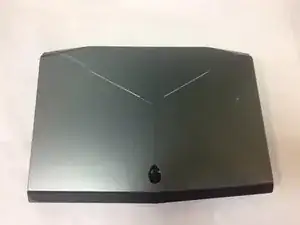

Flip the laptop back over so that the Alienware logo faces the ceiling then open the lid to view the screen.
-
-
-

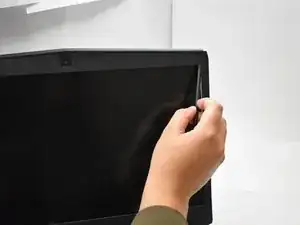

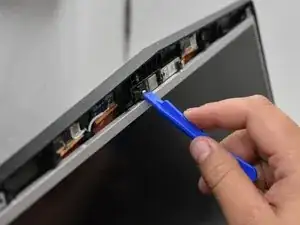

Use a spudger as a lever to pry the black plastic siding off of the frame starting on either of the top corners.
-

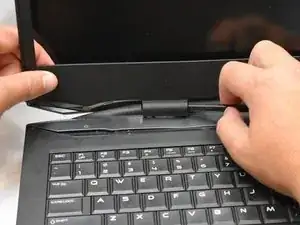

Use the spudger to remove the siding from the bottom of the frame near the hinges.
-
Carefully lift the black plastic siding up and out of the hinged area making sure not to break the fragile sides.
-
-
-

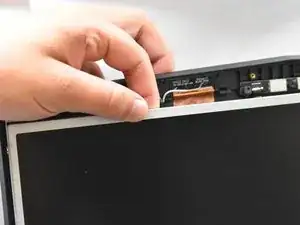

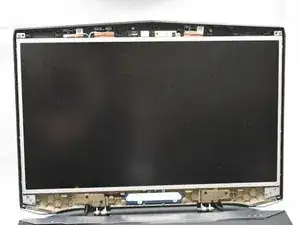

Tilt the screen forward to expose the connecting wires.
-

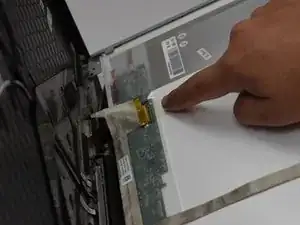

Disconnect said wires to then lift the display assembly out of the frame.
-
To reassemble your device, follow these instructions in reverse order.
