Alienware M17x P01E Coin Cell Battery Replacement

Geschrieben von: Jose
  • Kommentare: 0
Alienware M17x P01E Coin Cell Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

5 - 7 Minuten

Einleitung

Is your computer heating up unexpectedly and not working properly? Consider using this guide to replace the coin cell battery in your laptop.

  1. QL3VNEJDU4TMEJ5L

    • Please power off the computer and deplete the battery before attempting the following step.

  2. KQUSuOGG6tKXmqvi
    KQUSuOGG6tKXmqvi
    4QNIwFPD4iXCHvaq

    • Press down on the battery latch and slide it to the left.

    • Lift the battery out once it pops out.

  3. ZAiuFh4ll6YVUZOn

    • Loosen the two silver Phillips #1 screws.

    • The screws are held to the compartment door by a washer and cannot be removed.

  4. T2MZfN1STu1rc2Zg
    T2MZfN1STu1rc2Zg
    AsZqdToaVrj4wiID

    • Use your hand to gently lift and remove the compartment door.

  5. fe5EdOaxPOkoPOyv

    • Gently pull on the coin cell battery cable to disconnect it from the laptop.

  6. dPmfLrMUGwJIaGVQ

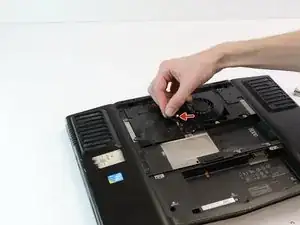

    • Pull on the battery to remove.

Abschluss

To reassemble your device, follow these instructions in reverse order.
