Alienware M17x P01E Graphics Card Replacement

Geschrieben von: Andrew Ruvalcaba
  • Kommentare: 0
Alienware M17x P01E Graphics Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

15 - 20 Minuten

Einleitung

Are the images and graphics on certain websites not loading properly? Consider using this guide to replace the graphics card of your laptop.

  1. QL3VNEJDU4TMEJ5L

    • Please power off the computer and deplete the battery before attempting the following step.

  2. KQUSuOGG6tKXmqvi
    KQUSuOGG6tKXmqvi
    4QNIwFPD4iXCHvaq

    • Press down on the battery latch and slide it to the left.

    • Lift the battery out once it pops out.

  3. ZAiuFh4ll6YVUZOn

    • Loosen the two silver Phillips #1 screws.

    • The screws are held to the compartment door by a washer and cannot be removed.

  4. T2MZfN1STu1rc2Zg
    T2MZfN1STu1rc2Zg
    AsZqdToaVrj4wiID

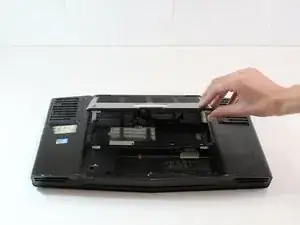

    • Use your hand to gently lift and remove the compartment door.

  5. MWTTVco6JFxIbZeF
    MWTTVco6JFxIbZeF
    EP5HeBMXy2YcSkEg
    jry4OEKuuAOxPxJX

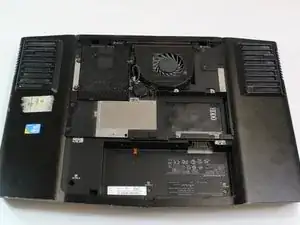

    • Remove the two 2mm Phillips #0 screws from the recesses on the left and right side of the processor fan.

  6. ww6dm41Ra5vuOnYL
    ww6dm41Ra5vuOnYL
    2KkQRXPntpTZsXFE

    • Turn the laptop top side up and fully open the display.

    • The center control panel is between the display and the keyboard. Fully opening the display ensures that there is enough room to pry and lift the center control panel.

    • Pry the center control panel up from its left and right edges with the Spudger.

    • The center control panel may require a decent amount of force to pry free. Do not immediately lift the panel from the laptop once it has been pried free. A cable is connected from the laptop to the center control panel.

  7. VL4JsDobBEJrDa2s
    VL4JsDobBEJrDa2s
    YJFRZtYSP2BnvXqg

    • Lift the center control panel from the laptop.

    • Tilt the center control panel away from the display carefully.

    • Lift the latch open to remove the cable connecting from the laptop to the center control panel.

  8. 4eK6X6aXqDXqJ2qL

    • Remove the five 3mm Phillips #0 screws.

  9. iLZZptTaHmV2U6kj
    iLZZptTaHmV2U6kj
    b4ZYyLIfj1XnuYSa
    lL4uCcLWTBqyQRTM

    • There two cables connected from the underside of the keyboard to the laptop.

    • Slide and lift the keyboard towards the display to unhook it from the laptop.

    • Tilt the keyboard away from the display carefully.

  10. arB3CDxcJV4R3XuN
    arB3CDxcJV4R3XuN
    qsqFEI2egw1MGErF

    • Flip open the two latches that connect the wide keyboard cable and thin light cable to the laptop.

    • Lift the keyboard off the laptop and set aside.

    • Don't be alarmed if the cables are already disconnected. Simply lifting the keyboard from the laptop may cause the cables to disconnect because the latches require very little force to open.

  11. fCJvuruCMnfpxdLu
    fCJvuruCMnfpxdLu
    YfhooTuHDQ6j12wl

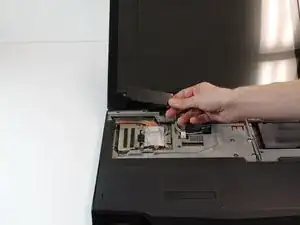

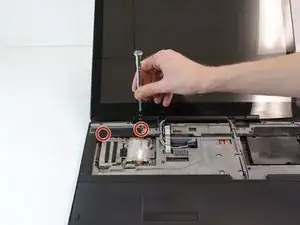

    • Unscrew the two Phillips #1 screws that secure the bracket.

    • The screws are held to the bracket by a washer and cannot be removed.

    • Use your hand to remove the bracket.

  12. rFUBxRMhYJVPHxVv

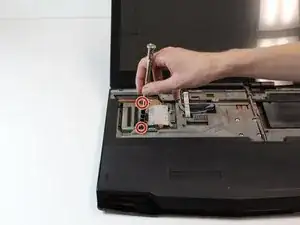

    • Remove the two 4mm Phillips #1 screws that secure the Graphics Card.

  13. Do6XqCgH1ZYTLAXI
    Do6XqCgH1ZYTLAXI
    fOHFH3FygVQlVJUJ

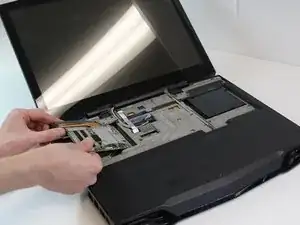

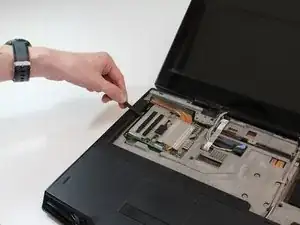

    • Use the spudger to pry and lift the Graphics Card from its compartment.

    • Use your hand to lift and pull out the Graphics Card.

Abschluss

To reassemble your device, follow these instructions in reverse order.
