Alienware M17x P01E Keyboard Replacement

Geschrieben von: Grant Dolmat
  • Kommentare: 0
Alienware M17x P01E Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

15 - 20 Minuten

Einleitung

Are the keys not registering when you type? Consider using this guide to replace the keyboard in your laptop.

  1. QL3VNEJDU4TMEJ5L

    • Please power off the computer and deplete the battery before attempting the following step.

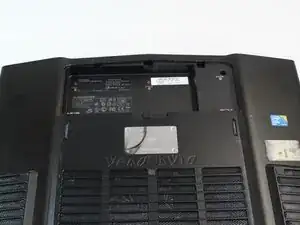

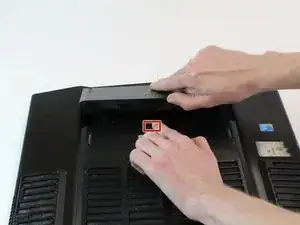

  2. KQUSuOGG6tKXmqvi
    KQUSuOGG6tKXmqvi
    4QNIwFPD4iXCHvaq

    • Press down on the battery latch and slide it to the left.

    • Lift the battery out once it pops out.

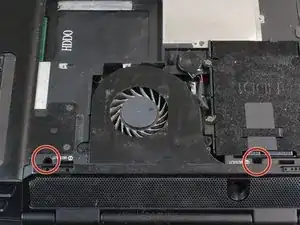

  3. MWTTVco6JFxIbZeF
    MWTTVco6JFxIbZeF

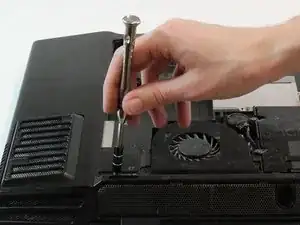

    EP5HeBMXy2YcSkEg

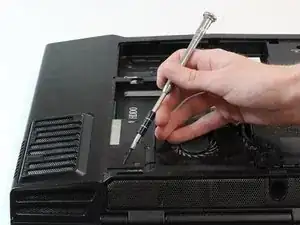

    jry4OEKuuAOxPxJX

    • Remove the two 2mm Phillips #0 screws from the recesses on the left and right side of the processor fan.

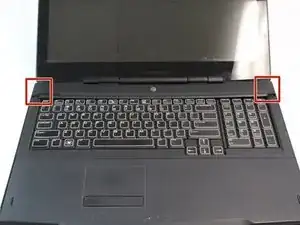

  4. ww6dm41Ra5vuOnYL
    ww6dm41Ra5vuOnYL

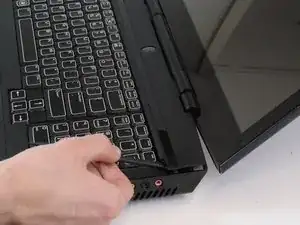

    2KkQRXPntpTZsXFE

    • Turn the laptop top side up and fully open the display.

    • The center control panel is between the display and the keyboard. Fully opening the display ensures that there is enough room to pry and lift the center control panel.

    • Pry the center control panel up from its left and right edges with the Spudger.

    • The center control panel may require a decent amount of force to pry free. Do not immediately lift the panel from the laptop once it has been pried free. A cable is connected from the laptop to the center control panel.

  5. VL4JsDobBEJrDa2s
    VL4JsDobBEJrDa2s

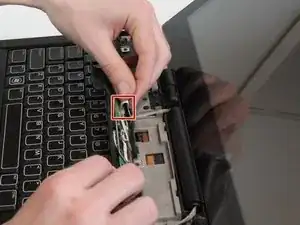

    YJFRZtYSP2BnvXqg

    • Lift the center control panel from the laptop.

    • Tilt the center control panel away from the display carefully.

    • Lift the latch open to remove the cable connecting from the laptop to the center control panel.

  6. 4eK6X6aXqDXqJ2qL

    • Remove the five 3mm Phillips #0 screws.

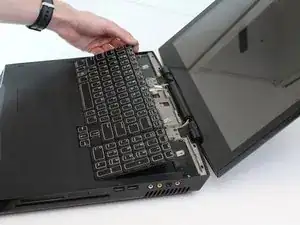

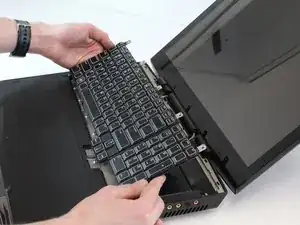

  7. iLZZptTaHmV2U6kj
    iLZZptTaHmV2U6kj
    b4ZYyLIfj1XnuYSa

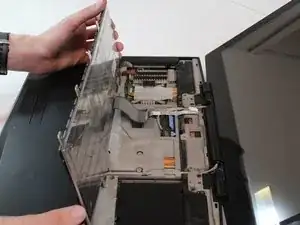

    lL4uCcLWTBqyQRTM

    • There two cables connected from the underside of the keyboard to the laptop.

    • Slide and lift the keyboard towards the display to unhook it from the laptop.

    • Tilt the keyboard away from the display carefully.

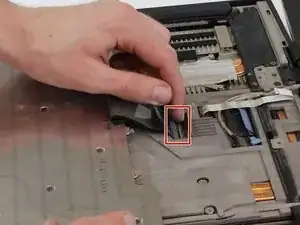

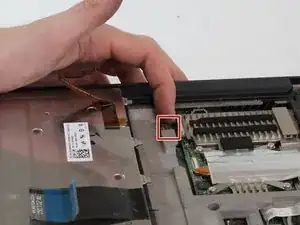

  8. arB3CDxcJV4R3XuN
    arB3CDxcJV4R3XuN
    qsqFEI2egw1MGErF

    • Flip open the two latches that connect the wide keyboard cable and thin light cable to the laptop.

    • Lift the keyboard off the laptop and set aside.

    • Don't be alarmed if the cables are already disconnected. Simply lifting the keyboard from the laptop may cause the cables to disconnect because the latches require very little force to open.

Abschluss

To reassemble your device, follow these instructions in reverse order.
