Alienware M17x P01E RAM Replacement

Geschrieben von: Jose
  • Kommentare: 0
Alienware M17x P01E RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

7 - 8 Minuten

Einleitung

Is your computer not loading application properly? Consider using this guide to replace the RAM in your laptop.

  1. QL3VNEJDU4TMEJ5L

    • Please power off the computer and deplete the battery before attempting the following step.

  2. KQUSuOGG6tKXmqvi
    KQUSuOGG6tKXmqvi
    4QNIwFPD4iXCHvaq

    • Press down on the battery latch and slide it to the left.

    • Lift the battery out once it pops out.

  3. ZAiuFh4ll6YVUZOn

    • Loosen the two silver Phillips #1 screws.

    • The screws are held to the compartment door by a washer and cannot be removed.

  4. T2MZfN1STu1rc2Zg
    T2MZfN1STu1rc2Zg
    AsZqdToaVrj4wiID

    • Use your hand to gently lift and remove the compartment door.

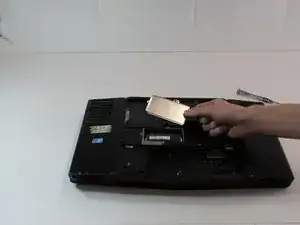

  5. tJbBhsRdYuCVHFj6
    tJbBhsRdYuCVHFj6
    GHXaOOPsykAV4QBs

    • Remove the Phillips #1 screw holding the plate.

    • Use your hand to remove the plate.

    • The screw is held to the plate by a washer and cannot be removed.

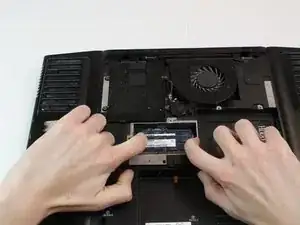

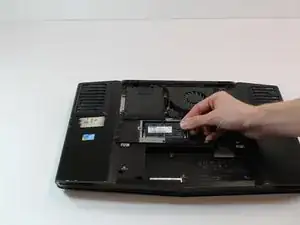

  6. 3OK1wtXEEYf13FNw
    3OK1wtXEEYf13FNw
    4rYCEtbnH1xgTtLY

    • Pull the clips to the side away from each other. The RAM will pop up.

    • Lift forward and gently loosen to pull out of socket.

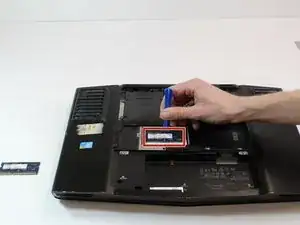

  7. MF2QyxL4FjuZSbOB

    • For the second RAM card use the opening tool to gently lift the RAM card forward.

Abschluss

To reassemble your device, follow these instructions in reverse order.
