Alienware M17x RAM Replacement

Geschrieben von: Mosier Locke
  • Kommentare: 1
Alienware M17x RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

8 Minuten

Einleitung

If your RAM can't keep up with the demands of today's mundane and daily tasks, use this guide to remove and replace your RAM cards.

  1. E5CSyDYSjWeI1wNM
    E5CSyDYSjWeI1wNM
    YsRuWZZUvFoCoI65

    • Turn off your laptop before starting.

    • Flip the laptop over so the model stickers face the ceiling.

  2. VvS5PqnkJbKLf3gd

    • Remove the two 3.5 mm Phillips #0 screws holding the cover in place.

    • Slide cover forward then carefully lift up.

  3. uEAmTY5dcKboOyvq

    • Remove the two 5.5 mm Phillips #0 screws holding the battery in place.

  4. XECnllMEWDoCf4WD
    XECnllMEWDoCf4WD
    HgOhIBnbOVaKrtGh

    • Carefully use the Plastic Opening Tool to unplug the battery.

    • Lift the battery up and out to remove.

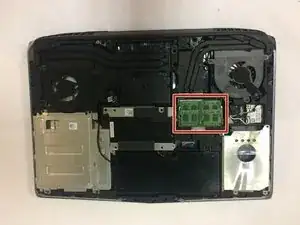

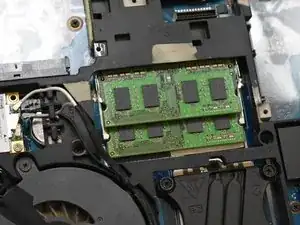

  5. YvD4JNsRrkZmJXAk
    YvD4JNsRrkZmJXAk
    X1Blu3jC6Qj2Agit

    • With the laptop flipped over, cover removed, and battery removed; continue by locating your RAM cards.

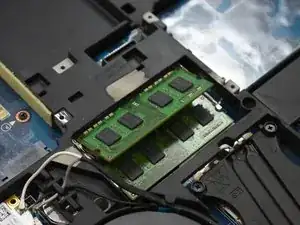

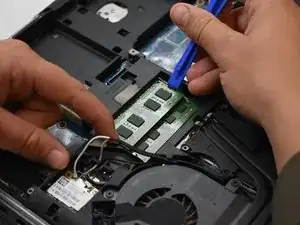

  6. WyH1IIuZSoTH1jkq
    WyH1IIuZSoTH1jkq
    iqYfpHKtHfFLTCS3

    • Remove the top RAM card by pressing the tabs to the sides using the Plastic Opening Tool.

    • Once the top card has popped up, carefully remove it by holding the sides and sliding it out.

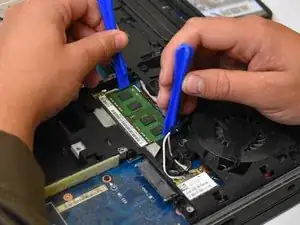

  7. kIerhMVlhD3WkAO2

    • Remove the bottom RAM card in a similar manner.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Mosier Locke

Mitglied seit: 28/09/18

729 Reputation

Ein Kommentar

The only problem is that this laptop has 4 slots of ram there are 2 more under the keyboard that must also be accessed to update. If anyone wants to know how I know it’s because I have this laptop and I have seen where the next lot of ram is located

Neil Radtke -
