Alienware P18G M14X R1 RAM Replacement

Geschrieben von: Andonaq Grozdani
  • Kommentare: 0
Alienware P18G M14X R1 RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

2 - 4 Minuten

Einleitung

In order to remove the RAM you first need to remove the battery.

  1. bIN3Y556NdNn1frA

    • Loosen the top left and top right 6.5mm PH1 screws that hold down the back cover.

    • The screws will not be able to be removed from the back cover. They can only be loosened or tightened.

  2. hKRHHwxZIPKikSKd

    • Slide back cover forward using your thumbs.

  3. 6hZJ5NhHHMhNLlIs

    • Lift up the cover and set aside exposing the internals of the computer.

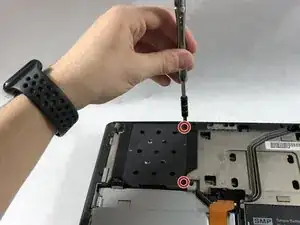

  4. sRBXaPKCiBZMCpyJ

    • Unscrew the two 6.35 mm using the PH1 screw driver.

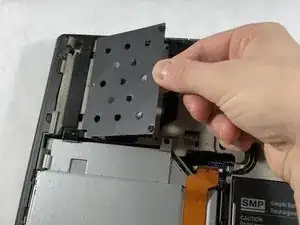

  5. YNX2uvZCKqrSOFZg
    YNX2uvZCKqrSOFZg

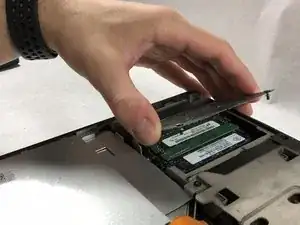

    l5vOuSoxdcGCgdoM

    • Lift the plate and remove it to uncover the RAM sticks.

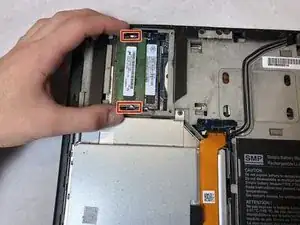

  6. 53SFSNtErkCeMTpP

    • Push outward on the prongs that secure the RAM stick in the slots.

    • After releasing the prongs the rams stick will rise up.

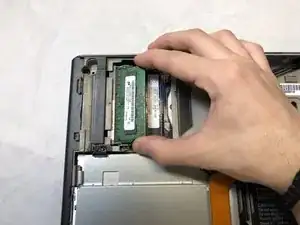

  7. FkqqAwmiMCN5gApQ

    • Be very gentle in this step, making sure to not damage anything.

    • Pull the RAM stick out of its housing.

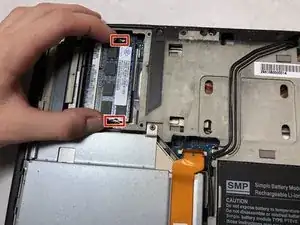

  8. JEUkDZsIae3rHgUk

    • Push outward on the prongs that secure the RAM stick in the slots.

    • After releasing the prongs the rams stick will rise up.

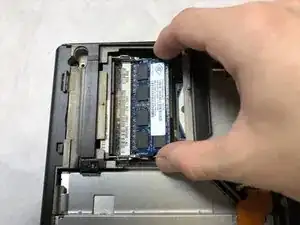

  9. KtRliIXMYSgSruJK

    • Be very gentle in this step, making sure to not damage anything.

    • Pull the second ram stick out of its housing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
