Prerequisites 1. Follow the procedure in Before working inside your computer.

  1. B1ZQFOkYsBr1AwrQ
    • Remove the two screws (M2.5x5) that secure the base cover to the palm-rest and keyboard assembly.

    • New line. Loosen the two captive screws (M2.5x8.5+3.5) that secure the base cover to the palm-rest and keyboard assembly

    • Loosen the four captive screws (M2.5x1.7+3.3) that secure the base cover to the palm-rest and keyboard assembly.

  2. WjXmA3AJQcf2ZFEa
    • Using your fingertips, pry open the base cover from the middle of the front edge of base cover, and then pry the left and right sides of the base cover.

    • Lift the base cover off the palm-rest and keyboard assembly.

  3. JkFcblcPb3Wdkwf5
    • Disconnect the battery cable from the system board.

    • Turn your computer over and press the power button for 20 seconds to drain the flea power

  4. 4aaftE6e5RWatvKd
    • Remove the two screws (M2x4) that secure the rear I/O-cover to the palm-rest and keyboard assembly.

    • Remove the two screws (M2.5x5) that secure the rear I/O-cover to the palm-rest and keyboard assembly.

    • Disconnect the Tron light cable from the system board.

    • Firmly grasp the sides of your computer with both hands and push the rubber feet on the rear I/O-cover outwards with yourthumbs to release the rear I/O-cover from the palm-rest and keyboard assembly.

    • Slide the rear I/O-cover away from the palm-rest and keyboard assembly.

  5. fq1PePuRHSFMJ4f6
    • Open the latch and disconnect the display cable from the system board.

    • Disconnect the Alienhead LED cable from the system board.

    • Disconnect the RGB-IR camera cable from the USB board.

    • Lift the system board Mylar and peel the tapes that secure the RGB-IR camera cable to the system board.

    • Lift the RGB-IR camera cable off the system board.

    • Turn the computer over and place the computer on a clean and flat surface.

    • Remove the display cable from the routing guides on the palm-rest and keyboard assembly.

    • Remove the RGB-IR camera cable from the routing guides on the palm-rest and keyboard assembly.

  6. ZrJ1BQnUxYxL2ARi

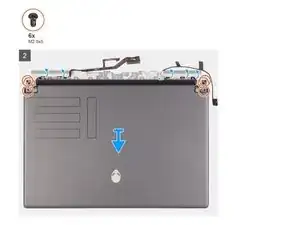

    • Remove the six screws (M2.5x5) that secure the display hinges to the palm-rest and keyboard assembly.

    • Lift the display assembly off the palm-rest and keyboard assembly.

  7. uIxCIpMGQvBUTReu

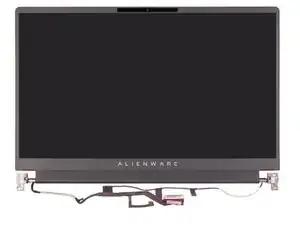

    • After performing all the above steps, you are left with the display assembly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
