Einleitung
Prerequisites
- Follow the procedure in Before working inside your computer.
Werkzeuge
-
-
Remove the two screws (M2.5x5) that secure the base cover to the palm-rest and keyboard assembly.
-
New line. Loosen the two captive screws (M2.5x8.5+3.5) that secure the base cover to the palm-rest and keyboard assembly
-
Loosen the four captive screws (M2.5x1.7+3.3) that secure the base cover to the palm-rest and keyboard assembly.
-
-
-

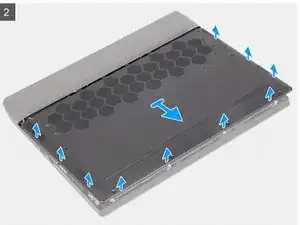

Using your fingertips, pry open the base cover from the middle of the front edge of base cover, and then pry the left and right sides of the base cover.
-
Lift the base cover off the palm-rest and keyboard assembly.
-
-
-

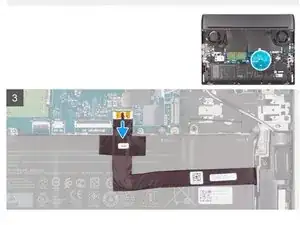

Disconnect the battery cable from the system board.
-
Turn your computer over and press the power button for 20 seconds to drain the flea power
-
-
-
Lift the system board Mylar and open the latch to disconnect the I/O-board cable from the system board.
-
Open the latch to disconnect the I/O-board cable from the I/O board.
-
Remove the screw (M2x4) that secures the I/O board to the palm-rest and keyboard assembly.
-
Loosen the captive screw (M2x2) that secures the I/O board to the palm-rest and keyboard assembly. (skip for NVIDIA GeForce RTX 3050 Ti discrete GPU controller)
-
Lift the I/O board off the palm-rest and keyboard assembly.
-
To reassemble your device, follow these instructions in reverse order.
