Alienware x51 r3 CPU Fan Replacement

Geschrieben von: Dominic Stringer
  • Kommentare: 0
Alienware x51 r3 CPU Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 - 20 Minuten

Einleitung

This guide will demonstrate removing an old CPU fan and installing a new CPU fan in the Alienware x51 r3 desktop computer. This should be done if the user notices excessive heat coming from the computer.

This guide will require the use of a #0 Phillips screwdriver. A set of needle nose pliers may also be necessary for some steps.

Before beginning, user should ensure that the computer is powered down and unplugged from any power source.

  1. oFgXPdZjbVKmaPOc
    oFgXPdZjbVKmaPOc
    NOPHVglgSSBHrnyO
    BCJeiUFCVV4JT6y4

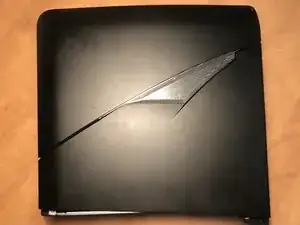

    • Lay down the case so that the power button is on the far right corner and is facing your right.

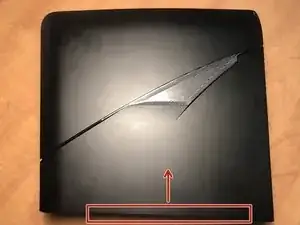

    • Unlock the side panel on the bottom edge by pushing its ridgeline towards the top edge. Lift the panel off of the case.

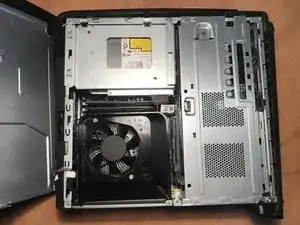

    • Peel back the cover slowly, as it will still be attached to the case by the cover lights cable. Place the panel against a clean, steady surface in preparation for the next step.

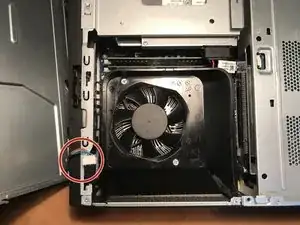

  2. YOOilVnVRouG2K41
    YOOilVnVRouG2K41

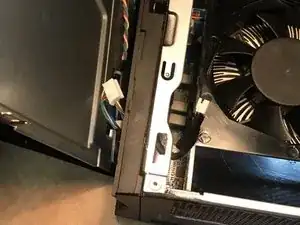

    WsI6l5W6nkULrMln

    • Use either your hands or the needle nose pliers to disconnect the cable from its port on the desktop. The lighting cable will still be attached to the case.

    • Safely set down the case lid when ready to move on.

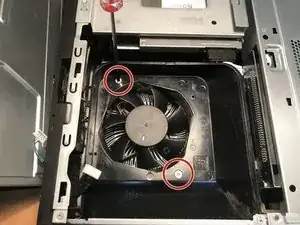

  3. nrb3klxCZEnQg3lA
    nrb3klxCZEnQg3lA

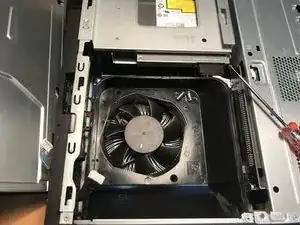

    OHLAI2O5HUpfGa1e

    • Using a #0 Phillips screwdriver, remove the screws connecting the fan cover to the fan by rotating the screwdriver counter-clockwise. Lift the fan cover out of the desktop and place to the side.

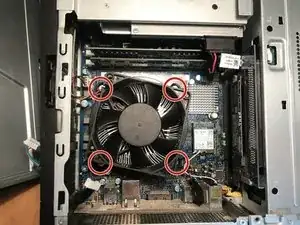

  4. vYDaODK1WCWyvQUY
    vYDaODK1WCWyvQUY

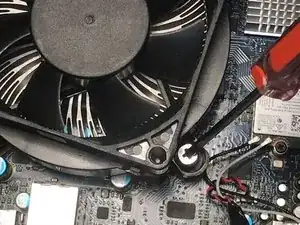

    BYDavKpNAIw4gBnF

    • Using a #0 Phillips screwdriver, remove the screws connecting the fan to the motherboard by rotating the screwdriver counter-clockwise.

    • To prevent bending, try to unscrew each corner a little bit at a time, rather than unscrewing one side completely before moving onto the next.

  5. UuIAGdWcs2Fxt3Oy
    UuIAGdWcs2Fxt3Oy
    WqWCpo1OsLN3xll6
    UZAcyLpgh4nEZJem

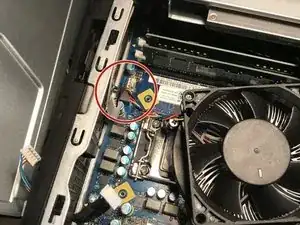

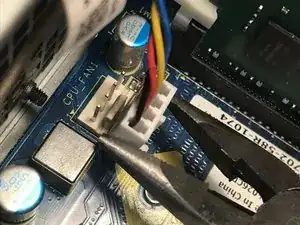

    • Using either your hands or a small needle nose plier, carefully remove cable connecting the fan to the desktop.

    • Do not rip the cable straight out. Instead, try wiggling the plier back and forth to disconnect.

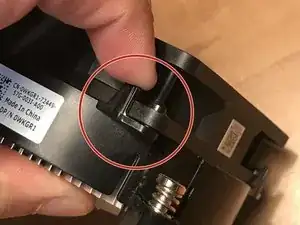

  6. mVygSwp5WOXOGJcZ
    mVygSwp5WOXOGJcZ
    cXMXvV2bEFXZUYMH
    nRRxKa16ysMOPOyv

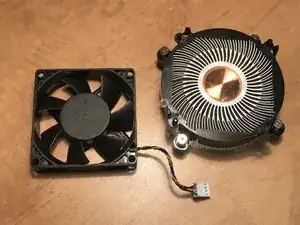

    • Using your thumb and forefinger, pry off the four clips holding the fan to the heatsink.

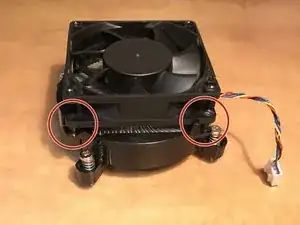

  7. B6EFcosfahBRk2q5
    B6EFcosfahBRk2q5
    GOS1xYwhtaXTWTvY

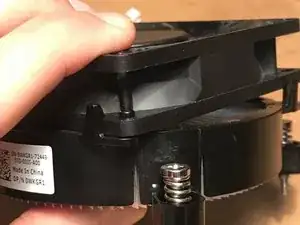

    • Place the new or cleaned fan onto the heatsink, and press down on the corners to lock the fan onto the heatsink.

    • Make sure that the fan is positioned to blow air into the heatsink, rather than out.

Abschluss

After installation of the new CPU fan, the user’s computer should run more efficiently.
