Altec Lansing BoomJacket 2 Battery Replacement

Geschrieben von: Zach Braaten
  • Kommentare: 1
Altec Lansing BoomJacket 2 Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

20 Minuten

Einleitung

If your BoomJacket 2 loses charge rapidly, or fails to charge at all consider replacing the battery.

  1. mkKeMZBPyyOj5caw
    mkKeMZBPyyOj5caw
    KShnAhTUHeR5VcZ5

    • Starting from any side, use your fingers to grab the black rubber sleeve and gently pull away from the speaker on both sides.

  2. 2RpSAkFCHP6CBUsq
    2RpSAkFCHP6CBUsq
    SHCxafgohvi2tHUJ

    • Using your fingers, grab the blue sleeve from one side and pull away from the unit.

  3. V1i3TqoLARI5Zlbm

    • At each of the marked pry spots, use the metal spudger to lift the speaker grill away from the case.

    • Avoid using excessive force to prevent bending the grill.

  4. o15FjqMcEQ24B4EM
    o15FjqMcEQ24B4EM
    Beu2KLPhGt5hpEoY

    • Use the tweezers to remove the six rubber stoppers. There are four in the middle and two on the sides.

  5. HuEAOOWEkeusjig3

    • Use the PH1 Phillips screwdriver to remove the six 12mm screws that lie underneath each rubber stopper.

  6. Zk1btJ1d2PQacye5

    • Gently pull apart the front panel from the base of the speaker.

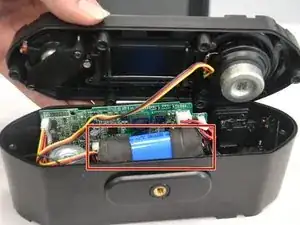

  7. mMO1MfUQhEUNZF6M

    • The battery will be in the middle of the speaker when the case is open.

    This is great what would make it awesome is if we could know the model number of the battery. No one seems to either know or they just won't say. Aarrgghh!!

    Which battery do I buy? Or is there an upgrade that will fit with larger capacity maybe? Thank you for your time.

    DJDOUBLEWIDE -

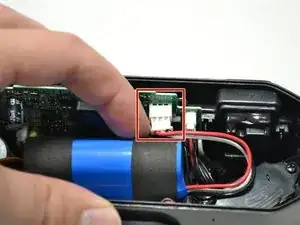

  8. AXZyim3wQkJtiaNW

    • Pull firmly from both sides of the pin to disconnect the battery cable from the motherboard.

    • Pull battery up and away from speaker without catching any other components.

    • Motherboards have fragile components and can easily be damaged if they are hit or pulled on while extracting other parts.

Abschluss

To reassemble your device, follow these instructions in reverse order.
