Altec Lansing BoomJacket Bluetooth Board Replacement

Geschrieben von: Ryan Byrnes
  • Kommentare: 1
Altec Lansing BoomJacket Bluetooth Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

10 - 20 Minuten

Einleitung

Does your speakers bluetooth not seem to be connecting or dropping connections? The bluetooth board could be the cause.

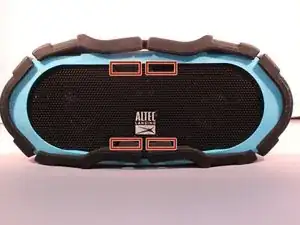

  1. AE4v4E6vrxSnHuZV

    • Using your hands, remove the pegs (4+4) from the front and back of the speaker.

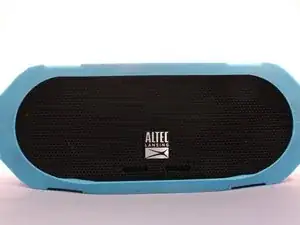

  2. AAJoEVitKGi3TvBr

    • Remove the outer black rubber housing of the speaker.

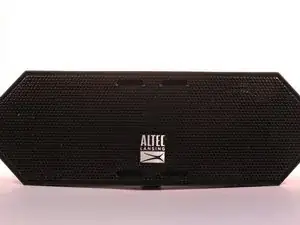

  3. gHyes4gihZM2XXU1

    • Remove the inner blue rubber housing from the speaker.

  4. hmF6bjeF1kD3LDjg

    • Pull out the two black wire meshes using a metal spudger.

    • Be careful not to damage the metal casing.

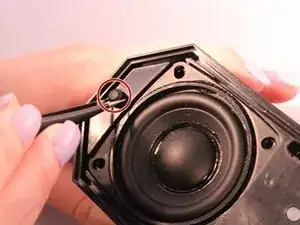

  5. 6QBbuE5Blq1Dt3nH
    6QBbuE5Blq1Dt3nH

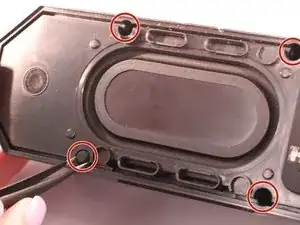

    5awbHeyhVgNvEvuN

    • Using tweezers remove the rubber stoppers (4 at the back + 2 at the front).

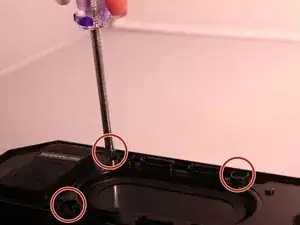

  6. kV3tH5hjZHg56jDP

    • Using the size PH1 screwdriver remove the screws exposed from the rubber stoppers (4 + 2).

  7. JUEhriNTix1xlyBe

    • Pull the case apart and you will be able to see all the components inside the speaker.

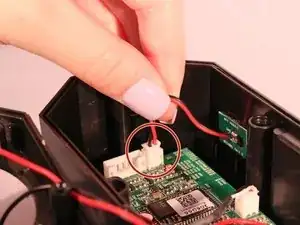

  8. soHZVtoIPTeWAMgn

    • Now that the case is open look for the small green (NFC) chip on the inside of the case next to the motherboard.

  9. 43XCgVGnjVpGncbD

    • Disconnect the Bluetooth (NFC) chip from the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
