Altec Lansing Mini Lifejacket 2 Speaker Replacement

Geschrieben von: Stephen Albrecht
  • Kommentare: 6
Altec Lansing Mini Lifejacket 2 Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

9 Minuten

Einleitung

If your Altec Lansing Mini Lifejacket 2's speaker is damaged or faulty, use the following step-by-step guide to replace it. This guide applies to both the speakers.

  1. iMgpmtJGsp4dWKYO
    iMgpmtJGsp4dWKYO
    4bKeAjjItDs2EhLx
    jneJG6X5F5Y1ShXE

    • Use the spudger to remove the eight black pins from the front and back of the wire screens.

  2. SRtXuGRv2YYYtTfv
    SRtXuGRv2YYYtTfv
    6ZeWkmDasdZ3SePM
    swBfuZEXnOTLV6qj

    • Detach the eight secondary pins from the front and back of the wire mesh plates with a spudger.

    • Removing the secondary pins from the rubber casing is optional.

  3. j5hd4dUyGfuo3jVX
    j5hd4dUyGfuo3jVX
    LFIRg15M1cZQGHB3

    • Remove both black and orange layers from the speaker body.

  4. 5eoQZ5gaZTq2rJkd
    5eoQZ5gaZTq2rJkd
    3eSOHWv1lGAOBoCc
    XIRBSE16OKK2F6yC

    • Remove the single 7.8mm Phillips #2 screw from the mounting plate located under the device.

    • Slide the mounting plate out to remove it.

  5. kTXdgjbnICsiQxpL
    kTXdgjbnICsiQxpL
    uJS2wWULtWdb2nVS

    • Pry off the wire mesh on both sides using a metal spudger.

    • Be gentle to avoid bending the mesh.

  6. NoeYMaI6emvX2456
    NoeYMaI6emvX2456
    vOYgTFfb6JoXpsrt

    • Using tweezers, remove the four rubber stoppers in each corner of the rear panel.

  7. 1MNTVYOCqiNWOlDt

    • Remove the four 13.7mm Phillips #1 screws located underneath the rubber stoppers.

  8. P31nOlY1VkPquiBL

    • Pull the case apart to access the interior components.

  9. drcPBcjCydiQajl3
    drcPBcjCydiQajl3
    QyOZMCvb4rnTrUTW
    BPDABsG1XsOH6UVs

    • To remove the back panel, gently pull out its wire harness.

    What does doing all of this accomplish?

    Is there an end result here? Now what?

    Lynn Bits -

    What does all of accomplish? Now what? How does it fix the fact the device won’t charge at the charging port?

    Lynn Bits -

  10. uLpLjNB1bMCGcF4P
    uLpLjNB1bMCGcF4P
    M2FGOLsu4Ec6AbiI

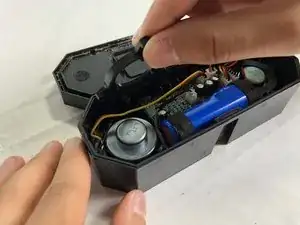

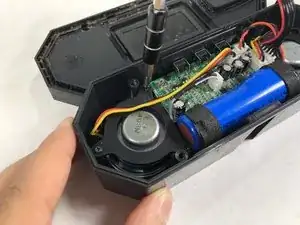

    • Remove the three 9.3 mm Phillips #1 screws on the speaker cover.

  11. a1SsukHrDMSiRLTv
    a1SsukHrDMSiRLTv
    VeEwvgKrEnIvG2wp
    LGDn2JResWnUjtZc

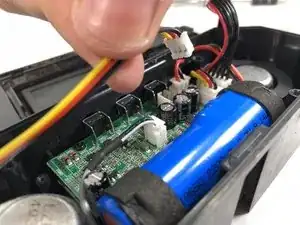

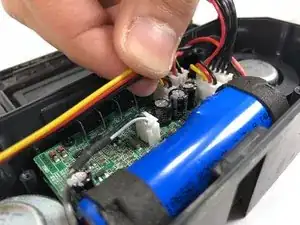

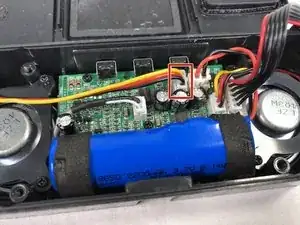

    • To remove the speaker, gently pull out the its wire harness.

  12. SNuidDpKsKmQGyQR
    SNuidDpKsKmQGyQR
    HVwLXJj4g2FN4dDW

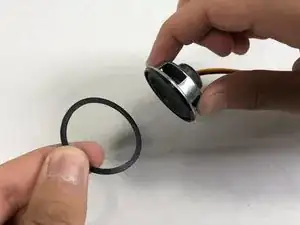

    • Remove the rubber ring from the rim of the speaker.

    • This ring helps keep water from entering the device. Be careful to position it correctly during reassembly.

    Where can i buy the altec lansing lifejacket 2 internal speakers online? Can you provide me the link?

    Chetan -

    Is there a part number for these two speakers? My speakers are making a crackling noise. Most likely one or two of the speakers are blown. I'm going to open it and check it. Where can I purchase these speakers online?

    GSPA -

Abschluss

To reassemble your device, follow these instructions in reverse order.
