If you are having an issue with your device not charging, access and replace the Micro USB charging port using this guide.
-
-
Use blue plastic opening tool to remove the external speaker face by placing it in the slight opening at the bottom.
-
Use a lever motion, push the tool down, lifting the speaker face.
-
Use fingers to grip and remove speaker face.
-
Repeat on reverse side to remove the second speaker face.
-
-
-
Orient speaker so volume buttons are facing away from you, and Bluetooth and power buttons are on the left-hand side.
-
Remove the seven 14mm screws using the Phillips #1 screwdriver.
-
-
-
Reorient speaker so Bluetooth and power buttons are now on the right-hand side.
-
Separate the two panels along the crease.
-
Blue plastic opening tool may be needed to separate panels.
-
Remove the panel with no buttons to expose internal area of the device.
-
-
-

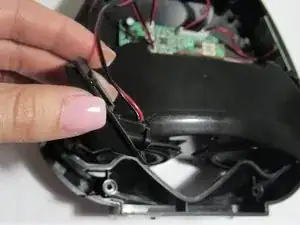

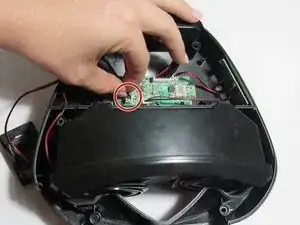

Remove the plactic piece containing the Micro USB port from its designated slot, found below the speakers.
-
-
-

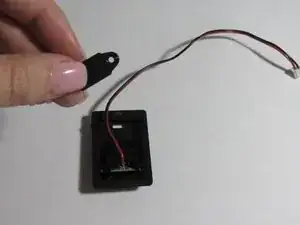

Remove the small black plastic piece that was held in place by the two 10 mm screws and covers the Micro USB port.
-
-
-

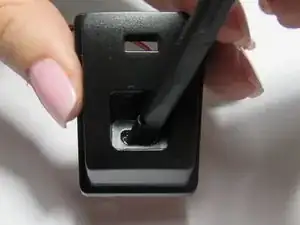

Use the black plastic spudger to lightly push the Micro USB piece out of the external plastic piece.
-
To reassemble your device, follow these instructions in reverse order.
