Alternative Opening Procedure

Geschrieben von: Donald Todd
  • Kommentare: 2
Alternative Opening Procedure

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

15 - 30 Minuten

Einleitung

Prying the case open will inevitably cause damage. This method disengages the catches to allow the case to be easily opened by hand.

The technique is probably applicable to the Intel Mini which has similar catches, but has not been tried.

  1. 2OyOdXtABJATUFHi

    • Instead of a putty knife a dozen or more 1-1/2" pins are required.

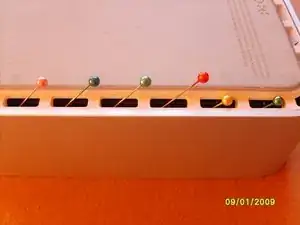

  2. V1j2tuNZXPieSKHR
    V1j2tuNZXPieSKHR

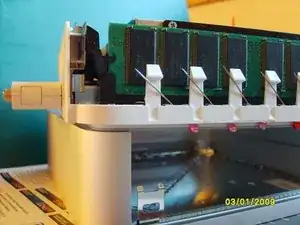

    XbuFJfRs1dkXflmk

    • With the computer upside down identify the apertures where the catches are located along either side and also at the front.

    • Insert the pins from the adjacent apertures between the wall and each catch. Be very careful to keep the pins against the case wall. This is more obvious from the second photo with the case removed.

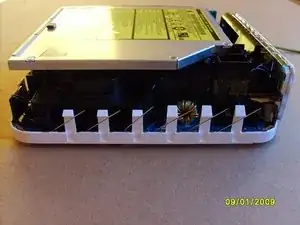

  3. IVFLcBGx4shaWbPZ

    • Lift the case off from the back first.

    • Remove the pins from the main assembly.

    I found that I just wedged about eight butter knives around two sides and then to gently press them all at the same time and it kind of popped up.

    Antonella Francesca -

Abschluss

Re-assembly does not require the pins. Place the case over the computer and press down evenly on the sides, not the middle. Ensure the back panel is correctly aligned before finally pushing home the catches.

Tinte & Feder

Donald Todd

Mitglied seit: 22/09/10

528 Reputation

Ein Kommentar

I've recently acquired a G4 Mini 1.33 "Silent Upgrade" on eBay and plan on opening up using your guide :) Thanks so very, VERY much!

Tyler Regas -
